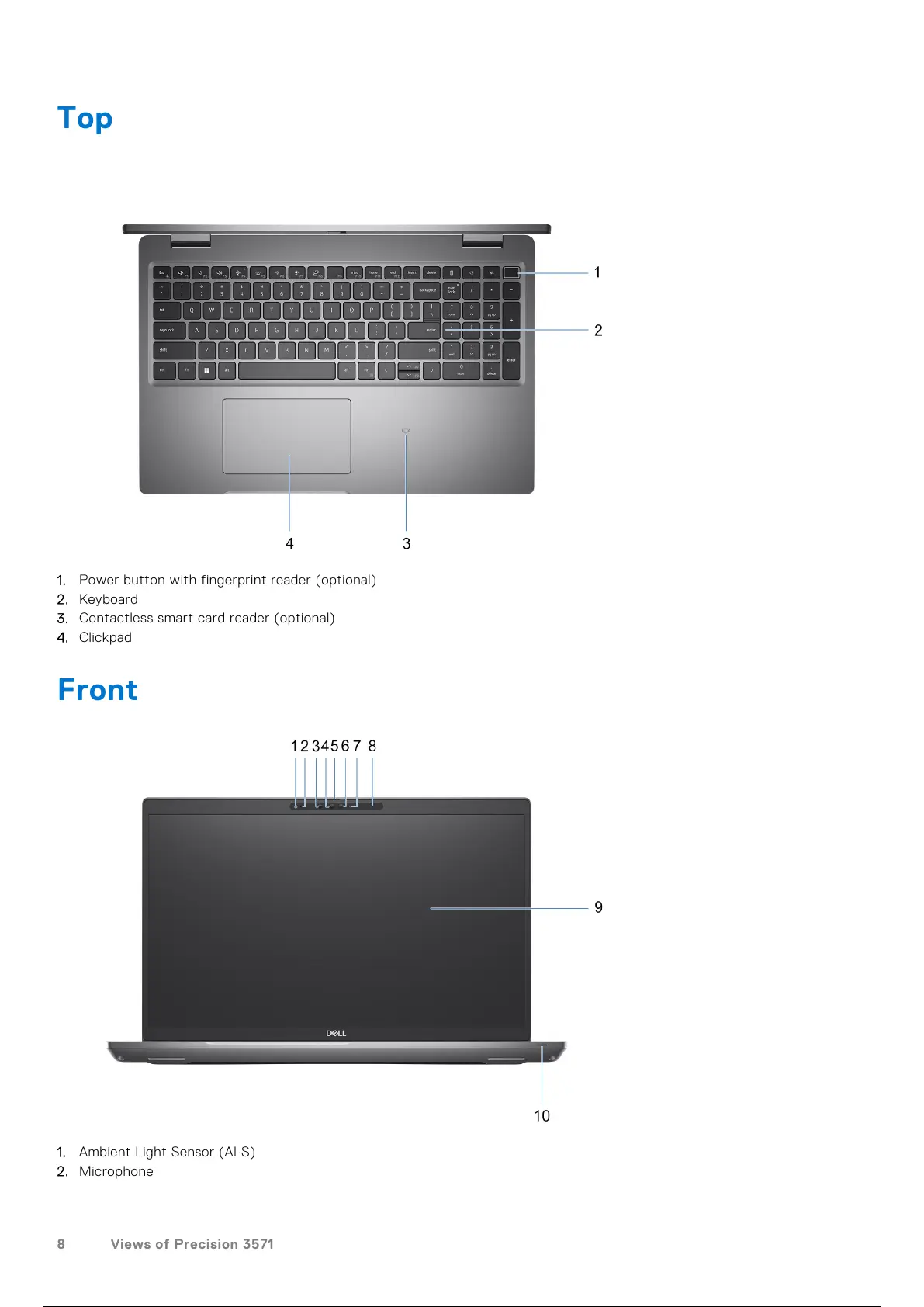

Top
1. Power button with fingerprint reader (optional)
2. Keyboard
3. Contactless smart card reader (optional)
4. Clickpad
Front
1. Ambient Light Sensor (ALS)
2. Microphone
8
Views of Precision 3571
9 / 33 8 / 31 9 / 33
