Dell P105F - I;O Board; Removing the I;O Board

About this task

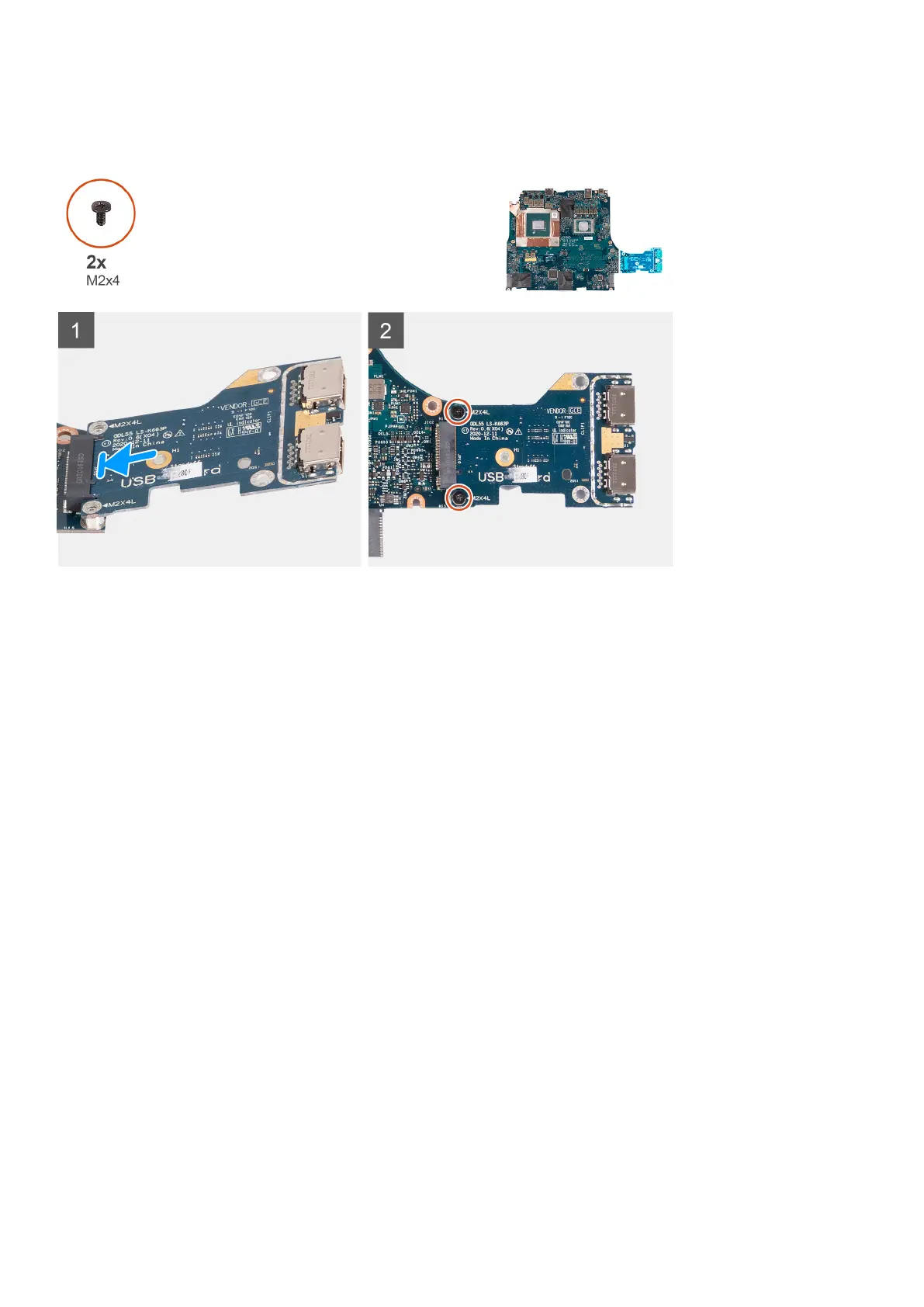

The following image indicates the location of the USB board and provides a visual representation of the installation procedure.
Steps
1. At an angle, insert the USB board in to the system board.
2. Install the two screws (M2x4) that secure the USB board to the system board.
Next steps
1. Follow the procedure from step 2 to step 19 in Replacing the system board.
2. Install the memory module.
3. Install the wireless card.
4. Install the solid-state drive 2.
5. Install the solid-state drive 1.
6. Install the rear cover
7. Install the battery.
8. Install the base cover.
9. Follow the procedure in After working inside your computer.
I/O board
Removing the I/O board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.
48
Removing and installing components
