Dell P106F001 Service Manual

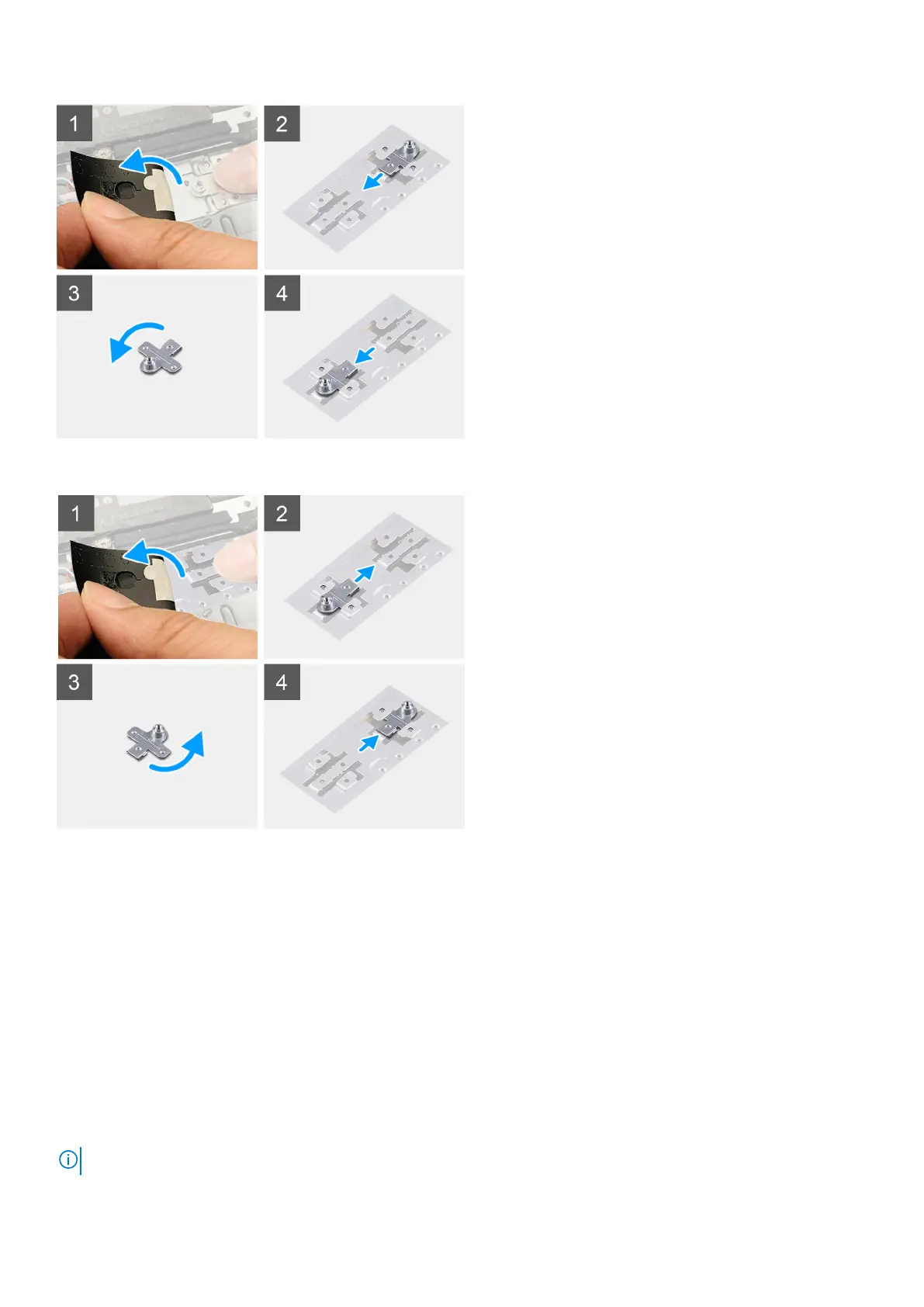

The following image provides a visual representation of the procedure to install the solid-state drive mounting bracket when
replacing M.2 2280 solid-state drive with M.2 2230 solid-state drive in M.2 slot one.
Steps
1. Slide and remove the solid-state drive mounting bracket from the mounting bracket slot on the palm-rest and keyboard
assembly.
2. Rotate the solid-state drive mounting bracket to 180 degrees.
3. Slide the solid-state mounting bracket into the mounting slot on the palm-rest and keyboard assembly.
4. Install the 2230 solid-state drive or 2280 solid-state drive, whichever applicable.
Solid-state drive—M.2 slot two
Removing the 2230 solid-state drive from M.2 slot two
Prerequisites
NOTE: M.2 slot two supports only 2230 solid-state drive.
28 Removing and installing components

Dell P106F001 Specifications

General

Model	Dell P106F001
Category	Laptop
Graphics	Intel UHD Graphics 620
CPU	Intel Core i7-8550U
Processor	Intel Core i7-8550U
Display Size	13.3-inch
