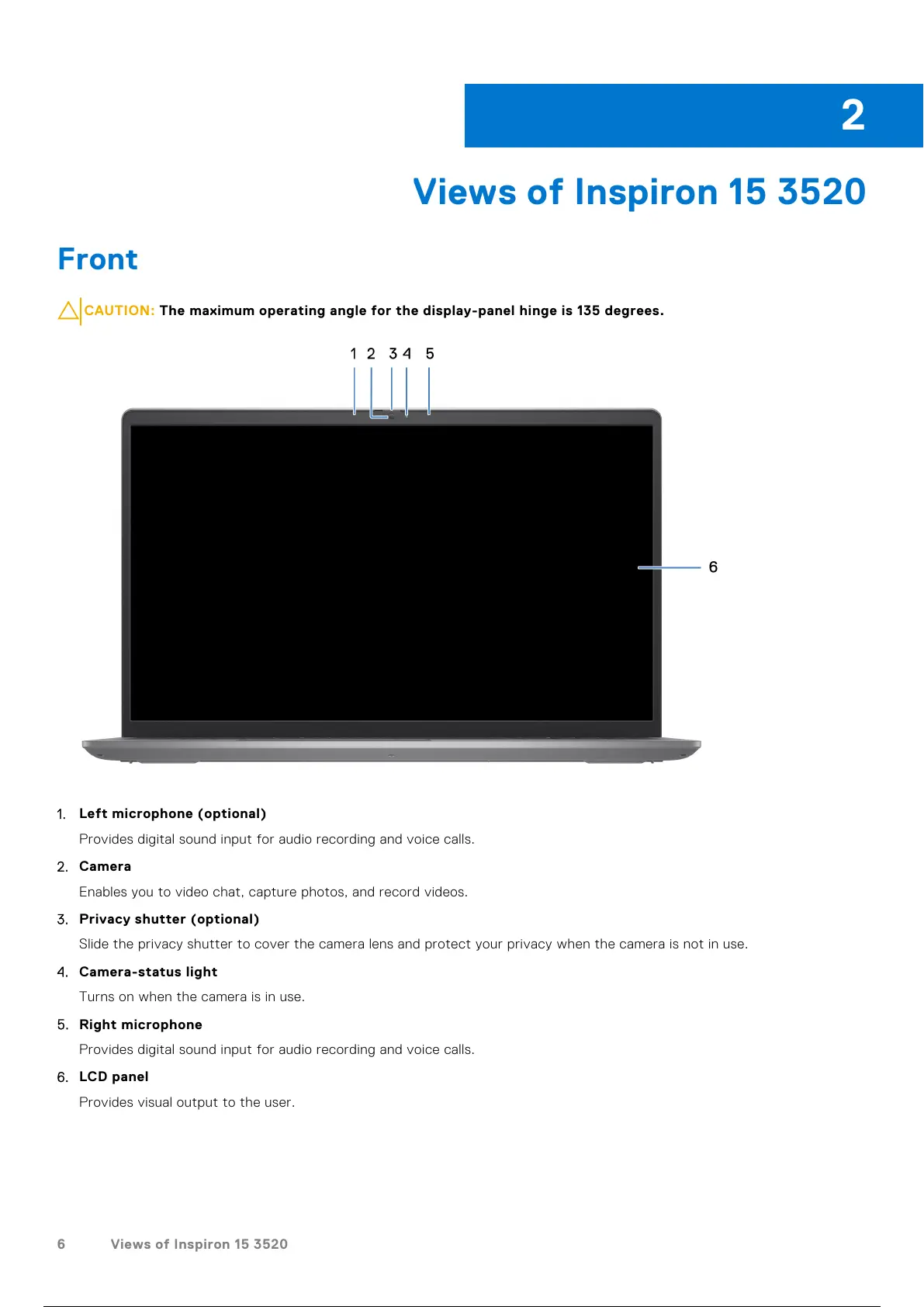

Views of Inspiron 15 3520
Front
CAUTION: The maximum operating angle for the display-panel hinge is 135 degrees.
1. Left microphone (optional)
Provides digital sound input for audio recording and voice calls.
2. Camera
Enables you to video chat, capture photos, and record videos.
3. Privacy shutter (optional)
Slide the privacy shutter to cover the camera lens and protect your privacy when the camera is not in use.
4. Camera-status light
Turns on when the camera is in use.
5. Right microphone
Provides digital sound input for audio recording and voice calls.
6. LCD panel
Provides visual output to the user.
2
6 Views of Inspiron 15 3520
