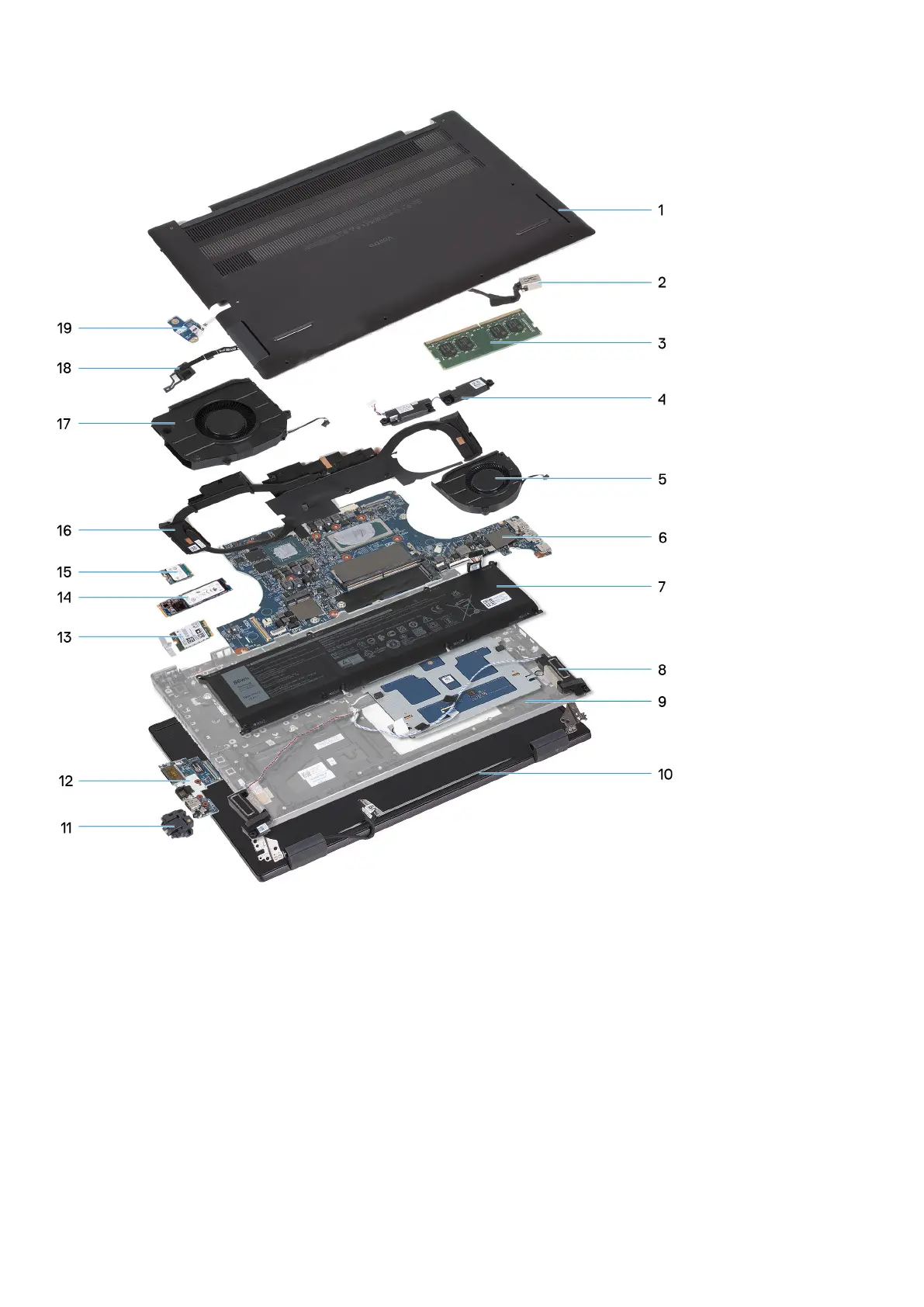

1. Base cover
2. Power-adapter port
3. Memory module
4. Speaker (tweeters) module
5. Right Fan
6. System board
7. Battery
8. Speaker (woofers) module
9. Palm-rest and keyboard assembly
10. Display assembly
11. RJ45 bracket
12. I/O board
13. Wireless card
14. M.2 2280 solid-state drive
15. M.2 2230 solid-state drive
12
Removing and installing components
