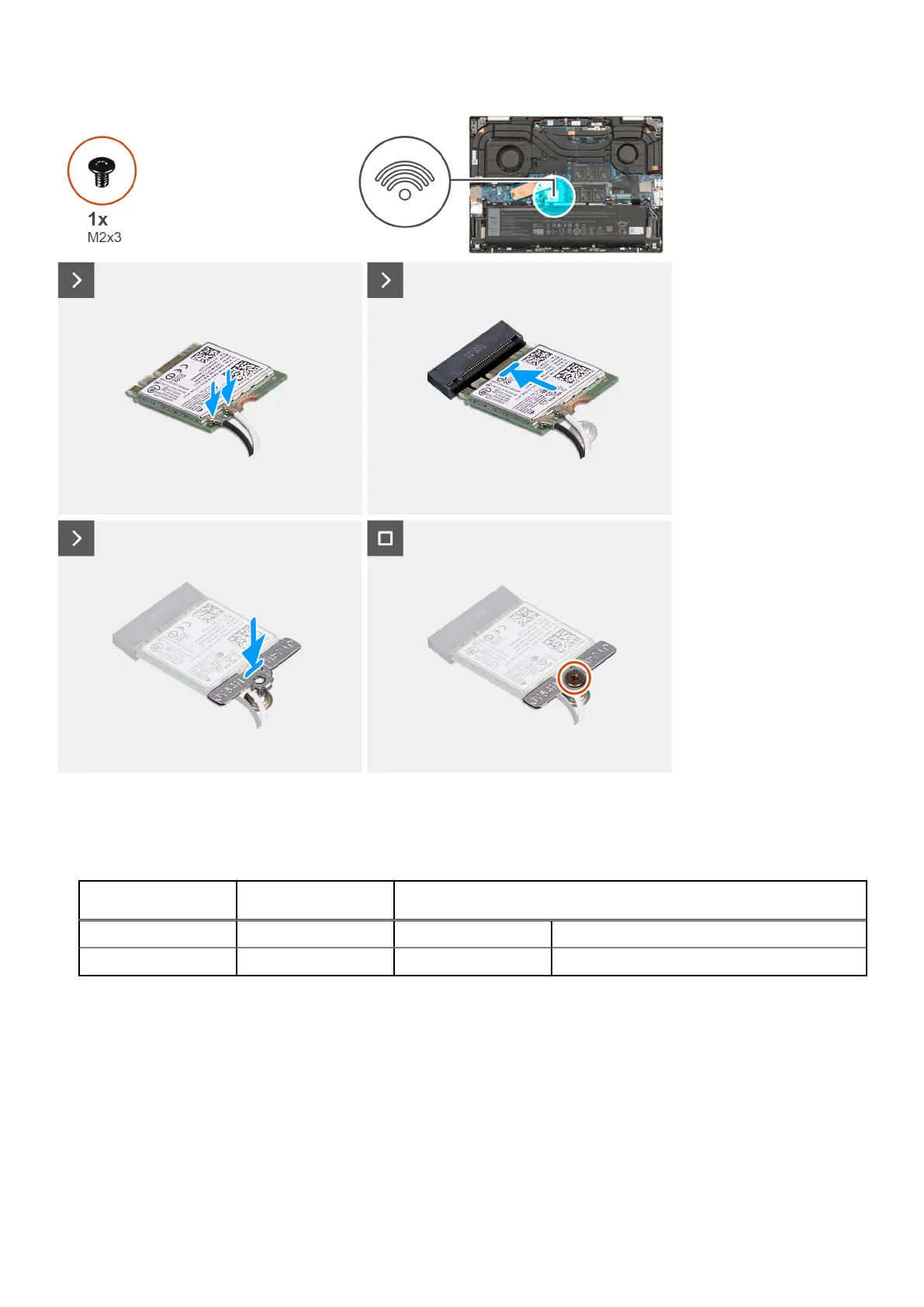

Steps
1. Connect the antenna cables to the wireless card.
Table 26. Antenna-cable color scheme
Connectors on the
wireless card
Antenna-cable color Silkscreen marking
Main White MAIN △ (white triangle)
Auxiliary Black AUX ▲ (black triangle)
2. Align the notch on the wireless card with the tab on the M.2 wireless-card slot on the system board.
3. Slide the wireless card into M.2 wireless-card slot on the system board.
4. Place the wireless-card bracket on the M.2 wireless card.
5. Align the screw hole on the wirelss-card bracket to the screw mount on the system board.
6. Replace the screw (M2x3) that secures the wireless-card bracket to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
46
Removing and installing Customer Replaceable Units (CRUs)
