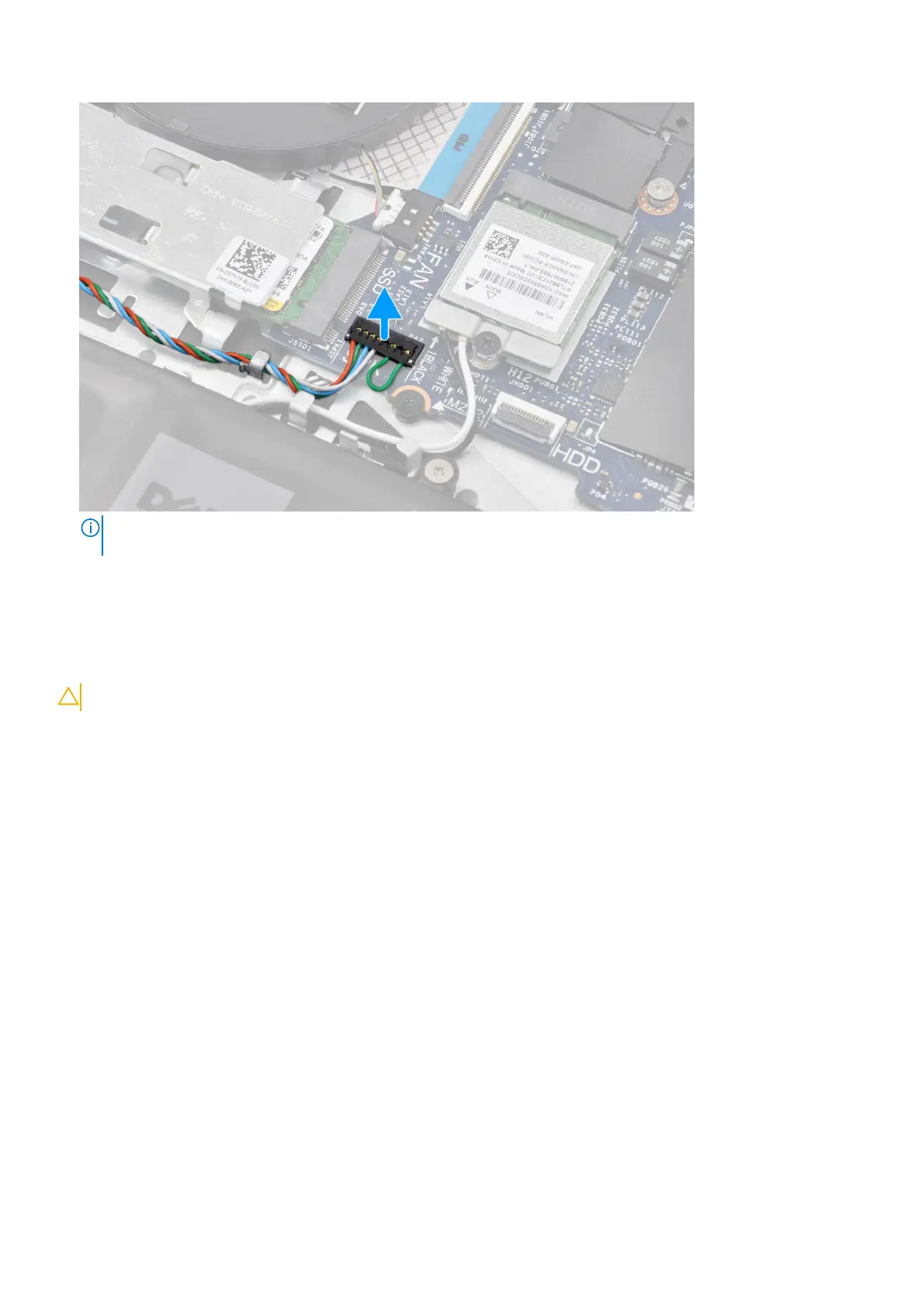

NOTE: For models shipped with a speaker cable featuring an eight-pin connector, to disconnect the speaker cable from
the system board, pry up the bottom side of the cable connector's head first and then pull it away from the connector.
3. Unroute the speaker cable from the routing guides on the palm-rest and keyboard assembly.
4. Lift the speakers along with its cable from the palm-rest and keyboard assembly.
Installing the speakers
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the speakers and provide a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
65
