Dell P161G - Removing the M.2 2280 Solid-State Drive

Steps

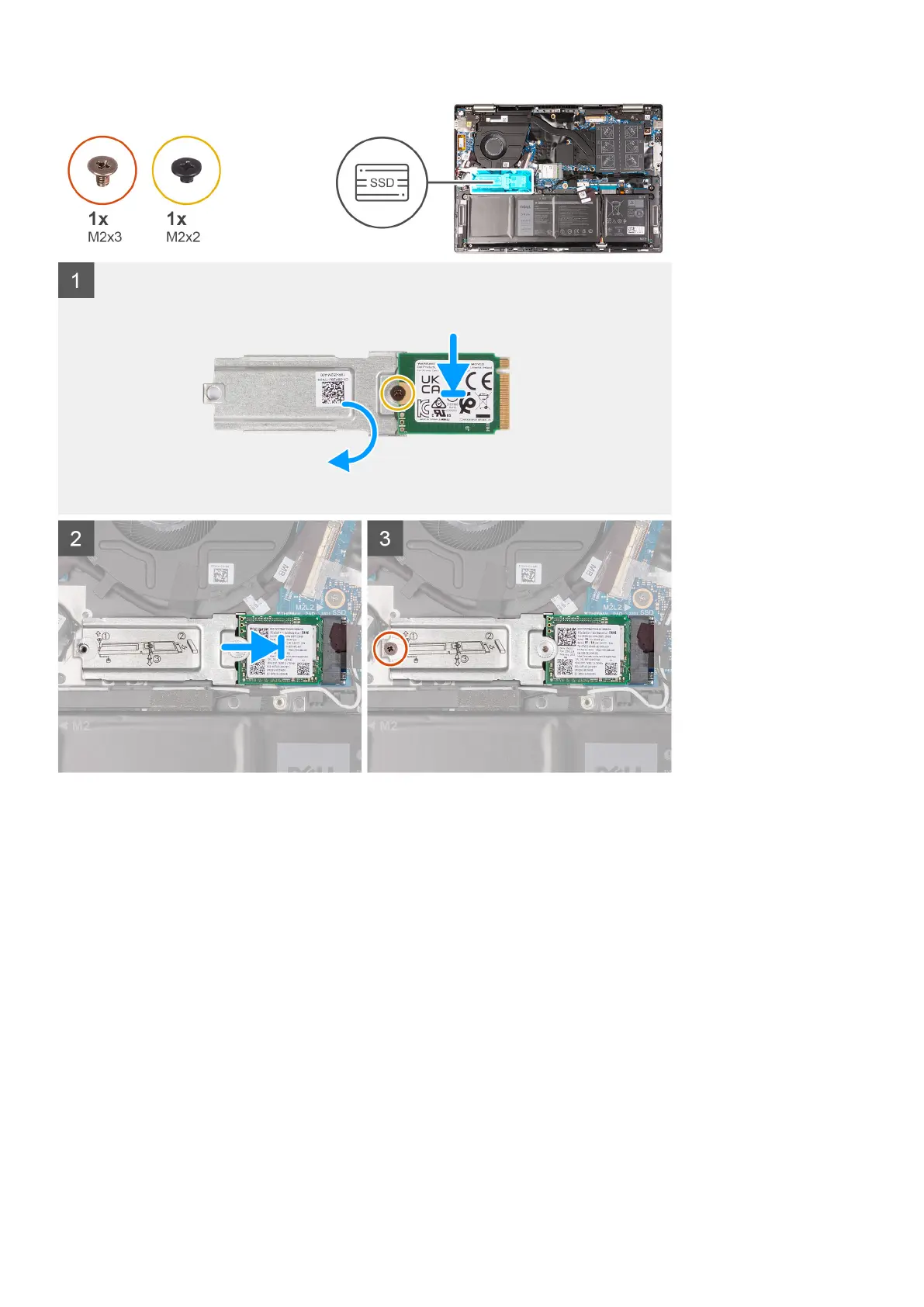

1. Align the notch on the M.2 2230 solid-state to the mounting bracket.
2. Replace the screw (M2x2) that secures the M.2 2230 solid-state drive to the mounting bracket.
3. Flip over the M.2 2230 solid-state drive and mounting bracket.
4. Slide and place the M.2 2230 solid-state drive and its mounting bracket on the system board.
5. Replace the screw (M2x3) that secures the M.2 thermal plate to the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
Removing and installing components
29
