5. Remove the I/O board.
About this task
NOTE: This procedure is applicable only for computers that are shipped without the optional fingerprint reader.

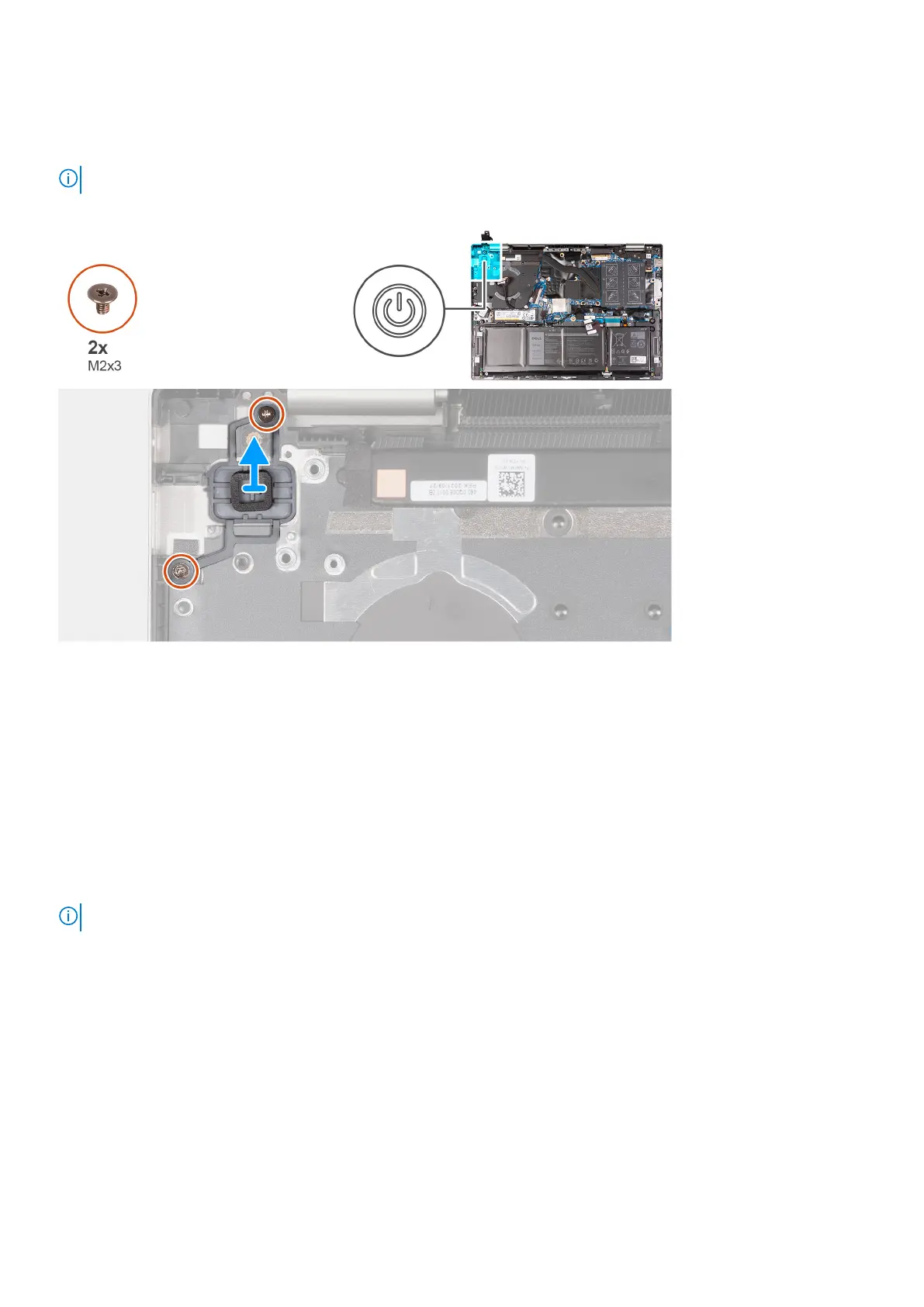

The following image indicates the location of the power-button and provides a visual representation of the removal procedure.
Steps
1. Remove the two screws (M2x3) that secure the power-button to the palm-rest and keyboard assembly.
2. Lift the power-button off the slot on the palm-rest and keyboard assembly.
Installing the power-button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: This procedure is applicable only when you are installing a power-button without the optional fingerprint reader.
The following image indicates the location of the power-button and provides a visual representation of the installation
procedure.
46
Removing and installing components
