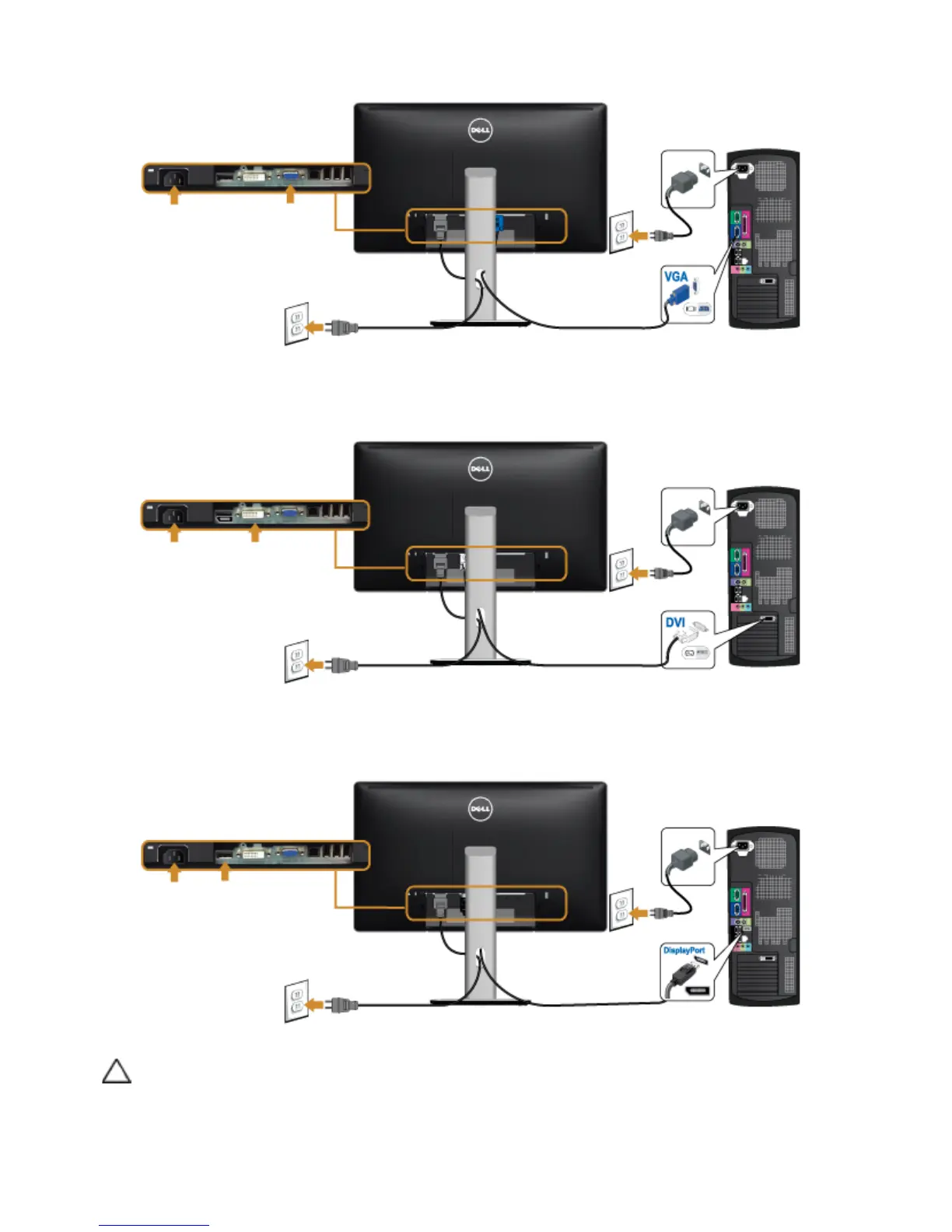

Connecting the blue VGA cable
Connecting the white DVI cable
Connecting the blac
k DisplayP
ort cable
CAUTION: The graphics are used for the pu
rpose of illustration only. Appearance
of the com
puter may vary.
22
|
Setting
Up
the
Monitor
21
23
