50 │ Setting up the monitor

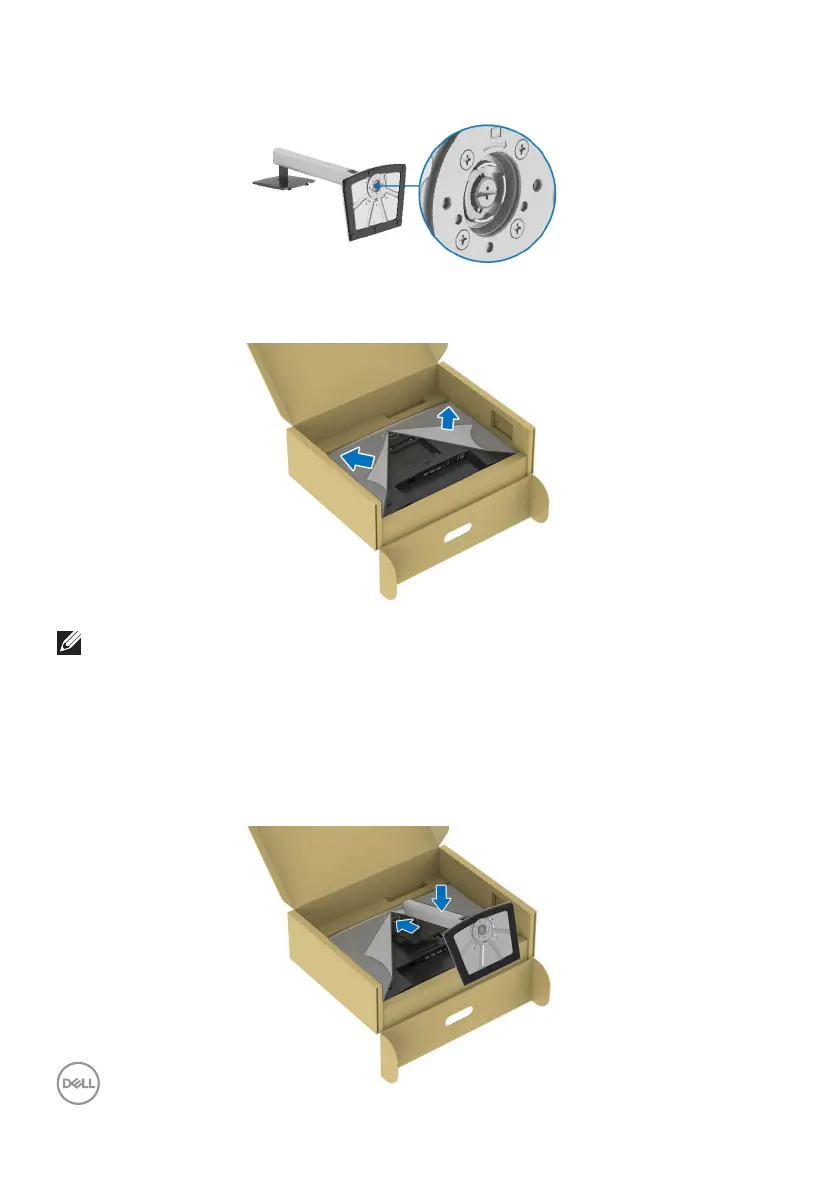

4. After fully tightening the screw, fold the screw handle flat within the recess.
5. Lift the protective cover, as shown, to access the VESA area for stand
assembly.
NOTE: Before attaching the stand assembly to the display, ensure that
the front plate flap is fully opened, as shown below, to allow space for
assembly.
6. A
ttach the stand assembly to the display.
• Fit the two tabs on the upper part of the stand to the groove on the back of
the display.
• Press the stand down till it snaps into place.
