Dell P519HL - Projector Top and Bottom View

About Your Dell Projector 5

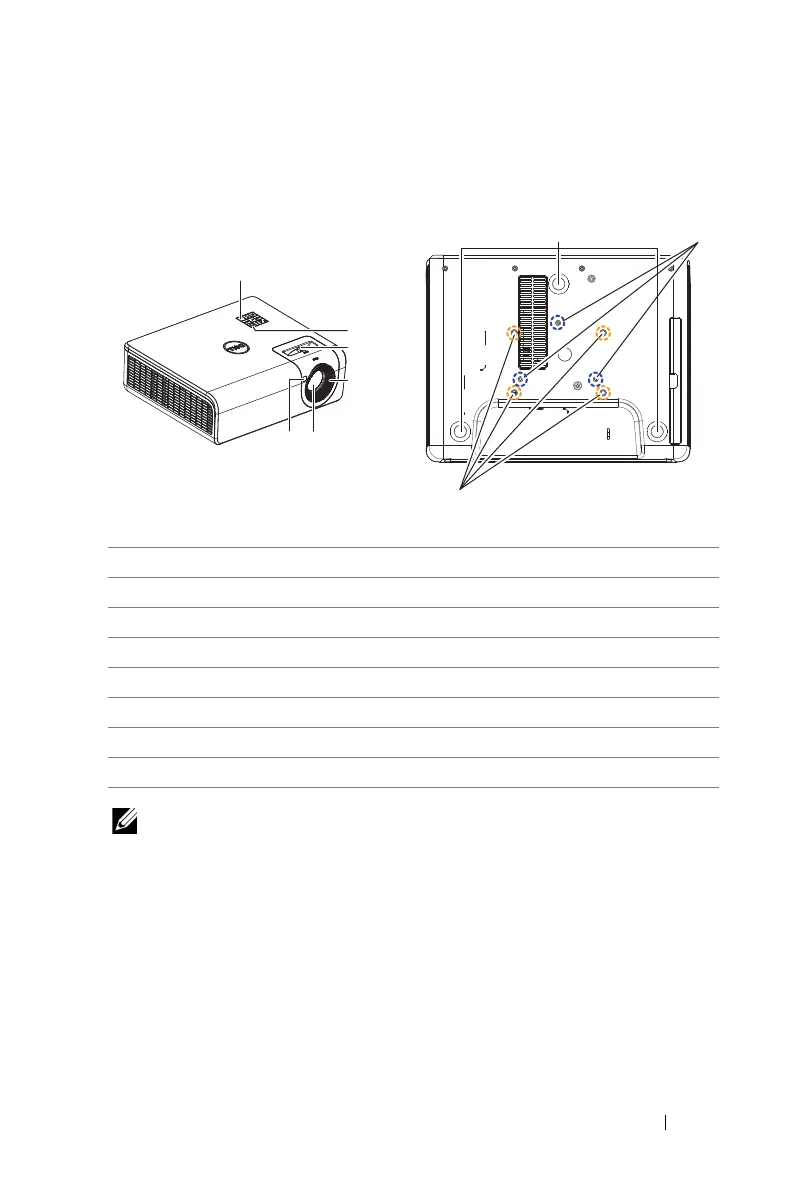

Projector Top and Bottom View
NOTE: Wall mount screw hole M4 x 8 mm depth.
Wall mount dimensions : 130mm X 88mm M4
Ceiling mount screw hole M3 x 8 mm depth.
Ceiling mount dimensions : 110mm X 82.3mm M3
1 IR receivers
2 Power button
3Zoom tab
4 Focus tab
5 Lens
6 Tilt adjustment wheel
7 Mounting holes for wall mount
8 Mounting holes for ceiling mount
2
5
3
4
1
1
8
6
7
Top View Bottom View
