P780
— 22 —— 21 —— 20 —— 19 —

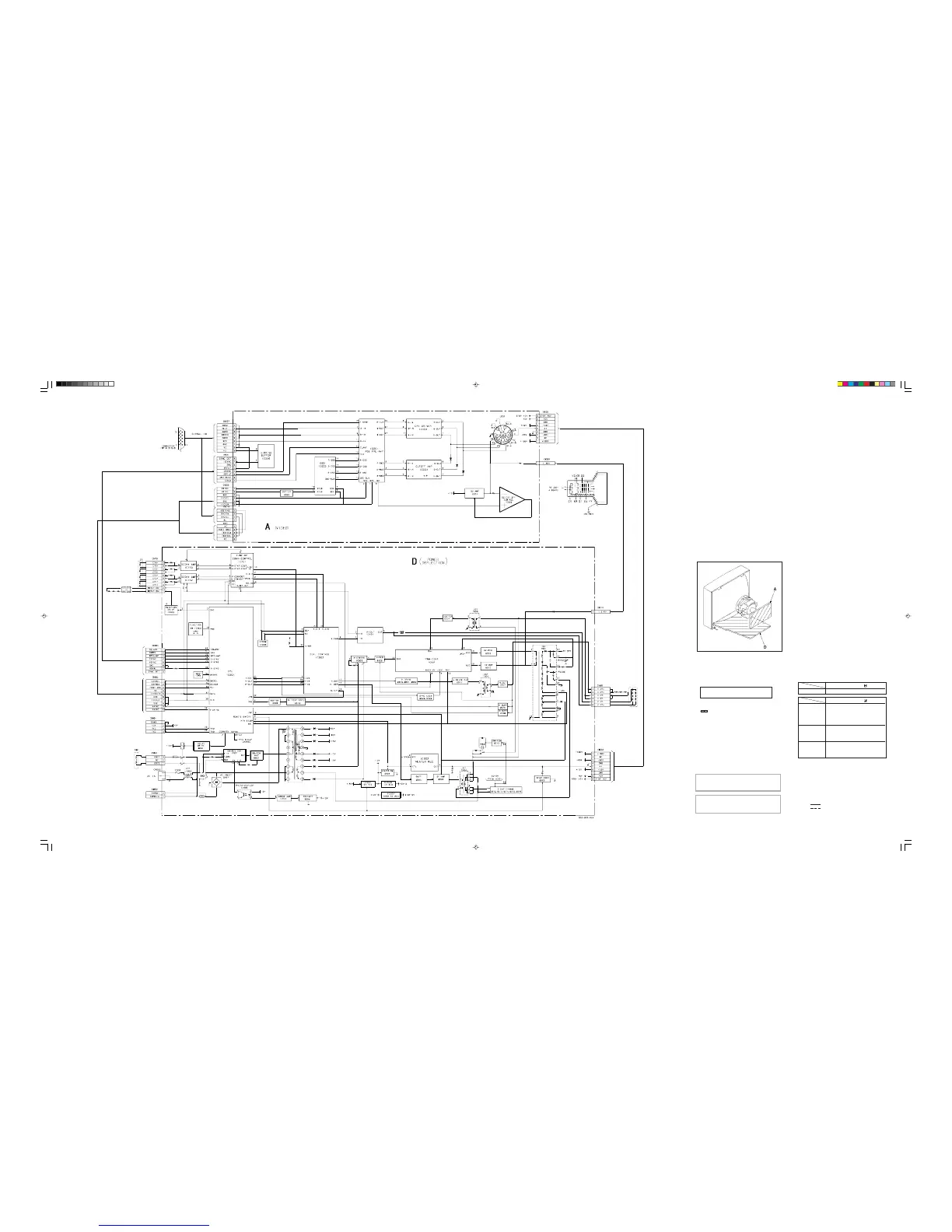

5-1. BLOCK DIAGRAM
5-2. CIRCUIT BOARDS LOCATION
Note:
All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytic.
Indication of resistance, which does not have one for rating
electrical power, is as follows.
All resistors are in ohms.
f : nonflammable resistor.
: fusible resistor.
: internal component.
p : panel designation and adjustment for repair.
e : earth-ground.
E : earth-chassis.
The components identified by [ in this basic schematic
diagram have been carefully factory-selected for each set
in order to satisfy regulations regarding X-ray radiation.
Should replacement be required, replace only with the
value originally used.
When replacing components identified by ], make the necessary
adjustments by using RV501 ([) as indicated. (See page 12)
All variable and adjustable resistors have characteristic curve B,
unless otherwise noted.
When replacing parts shown in the table below,
be sure to perform the safety related adjustment.
Pitch: 5 mm
Rating electrical power 1/4 W (CHIP: 1/10 W)
Note: The components identified by shading and
mark ¡
are critical for safety. Replace only
with part number specified.
Note: Les composants identifies per un trame et une
marque ¡ sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero specifie.
5-3. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS
SECTION 5
DIAGRAMS
Part Replaced ( )
RV501
HV ADJ
Part Replaced (
)
D board T501, IC501, RV501, R540,
R541, R542, R544, R564, R567,
R568, C532, C534, C539, C553,
C554, C555, C556, C558, C561
HV Regulator
Circuit
D board T501, R510, R543, R547, R549,
R552, R595, D515, D517, C540,
C542, C544, IC607, IC901
HV HOLD
DOWN Circuit
D board T501, R545, R546, R548, R550,
R596, R934, C535, C541,
IC605, IC607, IC901
Beam Current
Protector Circuit
All voltages are in volts.
Readings are taken with a 10 ΜΩ digital multimeter
Readings are taken with a color-bar signal input.
Voltage variations may be noted due to normal
production tolerances.
* : Cannot be measured.
Circled numbers are waveform references.
: B +bus.
: B - bus.
FOLDOUT 1 8/6/99, 8:44 AM1
