Dell P780 - 17" CRT Display User Manual

— 5 —
P780
SECTION 1
GENERAL

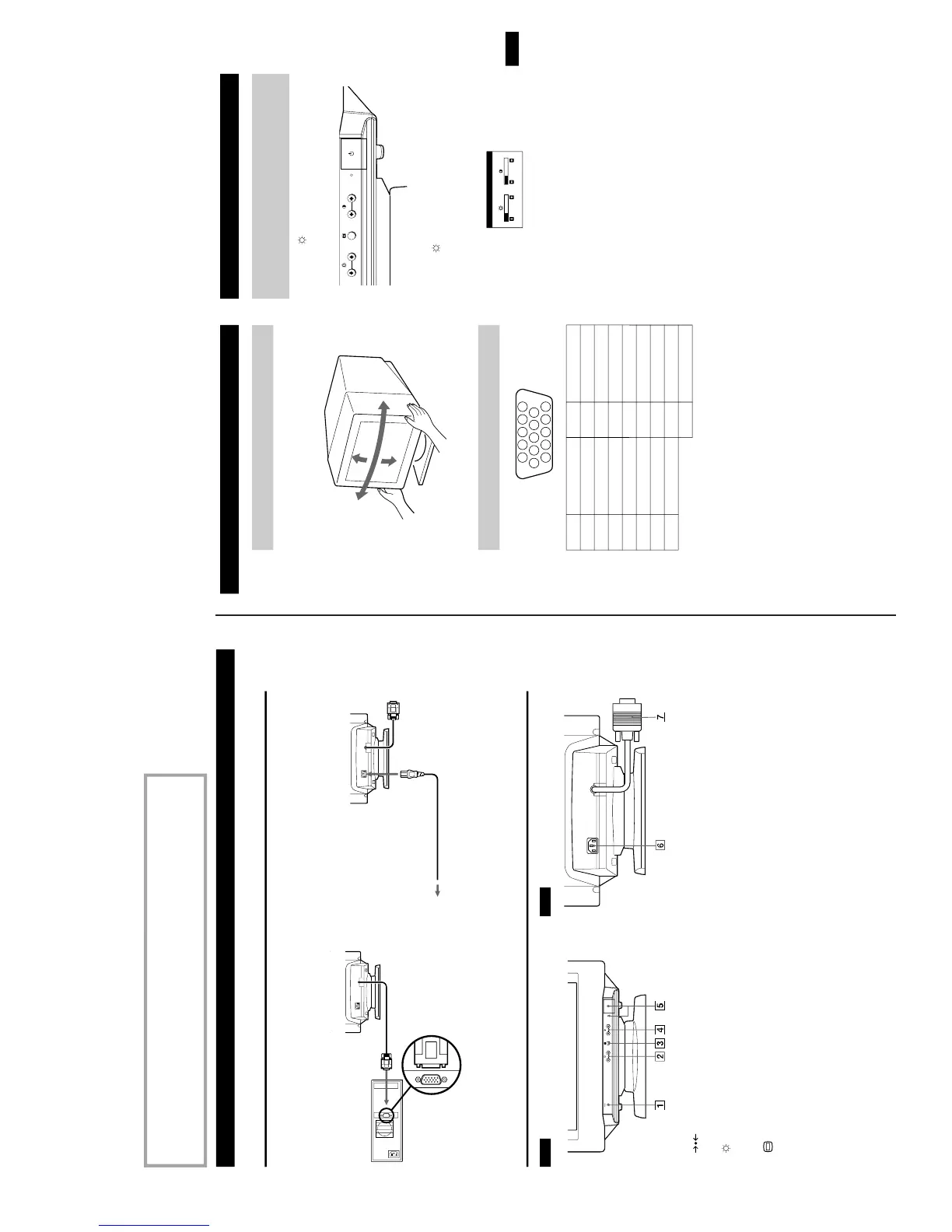

The following are partial abstracts from the Operating Instruction Manual. The page numbers shown reflect those of the Operating Instruction Manual.
4
Getting Started
Setup Connect the monitor to your computer system. This monitor will sync to platforms running at horizontal frequencies between 30 and 85 kHz. Step 1
Make sure the computer system is switched off and attach the video signal cable to the video output of the computer.
Step 2
Make sure the computer is switched off and attach the power cord to the monitor. Then, attach the other end of the power cord to a power outlet.
Step 3
Switch on the monitor and computer.
Step 4
Adjust the user controls according to your personal preference. Installation is complete.
Parts and Controls
1
(RESET) button (pages 6, 9)
This button resets the adjustments to the factory settings.
2
(BRIGHTNESS) (
v/V
) buttons (page 5)
These buttons adjust the picture brightness and function as the (
v/V
) buttons when adjusting other items.
3
(MENU) button (page 6)
This button displays the MENU OSD.
4 6
(CONTRAST) (
B/b
) buttons (page 5)
These buttons adjust the contrast and function as the (
B/b
)
buttons when adjusting other items.
5 1
(POWER) switch and indicator
This button turns the monitor on and off. The indicator lights up green when the monitor is on, and lights up green and orange when the monitor is in Power Saving mode.
6
AC IN connector This connector provides AC power to the monitor.
7
Video input connector (HD15) (page 5) This connector inputs RGB video signals and SYNC signals.
Computer
to the video output
to a power outlet
Power cord
Front
Rear
5
Getting Started
Customizing Your Monitor
US
This monitor can be adjusted within the angles shown below. To turn the monitor vertically or horizontally, hold it at the bottom with both hands.
1
Press the (BRIGHTNESS)
v/V
or
6
(CONTRAST)
B/b
buttons.
The BRIGHTNESS/CONTRAST OSD appears.
2
To adjust the brightness. Press the (BRIGHTNESS)
v/V
buttons.
To adjust the contrast. Press the
6
(CONTRAST)
B/b
buttons.
Use of the Tilt/Swivel
Video Connector
Pin No. Signal Pin No. Signal 1 Red video 8 Blue return 2 Green video 9 Not used (no pin) 3 Blue video 10 Ground 4 Ground 11 Ground 5 CPU host ground 12 SDA (serial data) 6 Red ground 13 Horizontal Sync 7 Green return 14 Vertical Sync
15 SCL (serial clock)
90°
5°
90°
15°
1234
5
987
10
11 12 13 14 15
6
Adjusting the Picture Brightness and Contrast
BRIGHTNESS/CONTRAST
26 26
