Dell P89G005 User Manual

2. Place the SSD bracket in its slot on the computer and replace the two (M2x3) screws to secure it to the system.
3. Install the: .
a. base cover
4. Follow the procedure in After working inside your computer.
Hard drive
Removing the hard disk drive
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Removing the SIM tray – WWAN models on page 12
b. base cover
c. battery

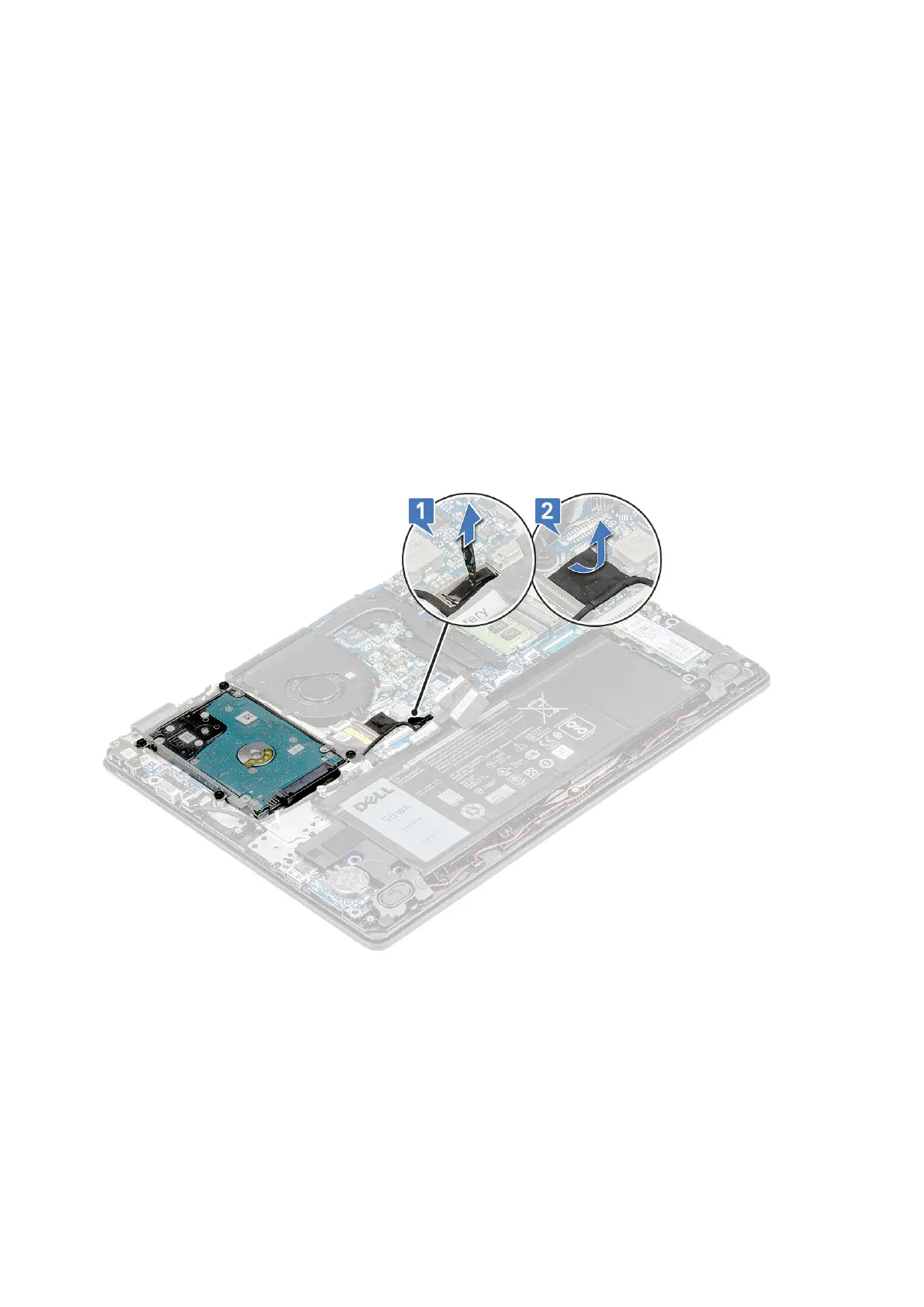

3. To remove the hard disk drive (HDD):
a. Disconnect the HDD cable from the system board [1].
b. Peel the adhesive tape that secures the HDD cable to the system board [2]
c. Remove the 4 M2.0x5.5 screws that secure the HDD to the palmrest [1].
d. Lift the HDD from the computer [2].
28
Disassembly and reassembly

Dell P89G005 Specifications

General

Brand	Dell
Model	P89G005
Category	Laptop
Language	English
