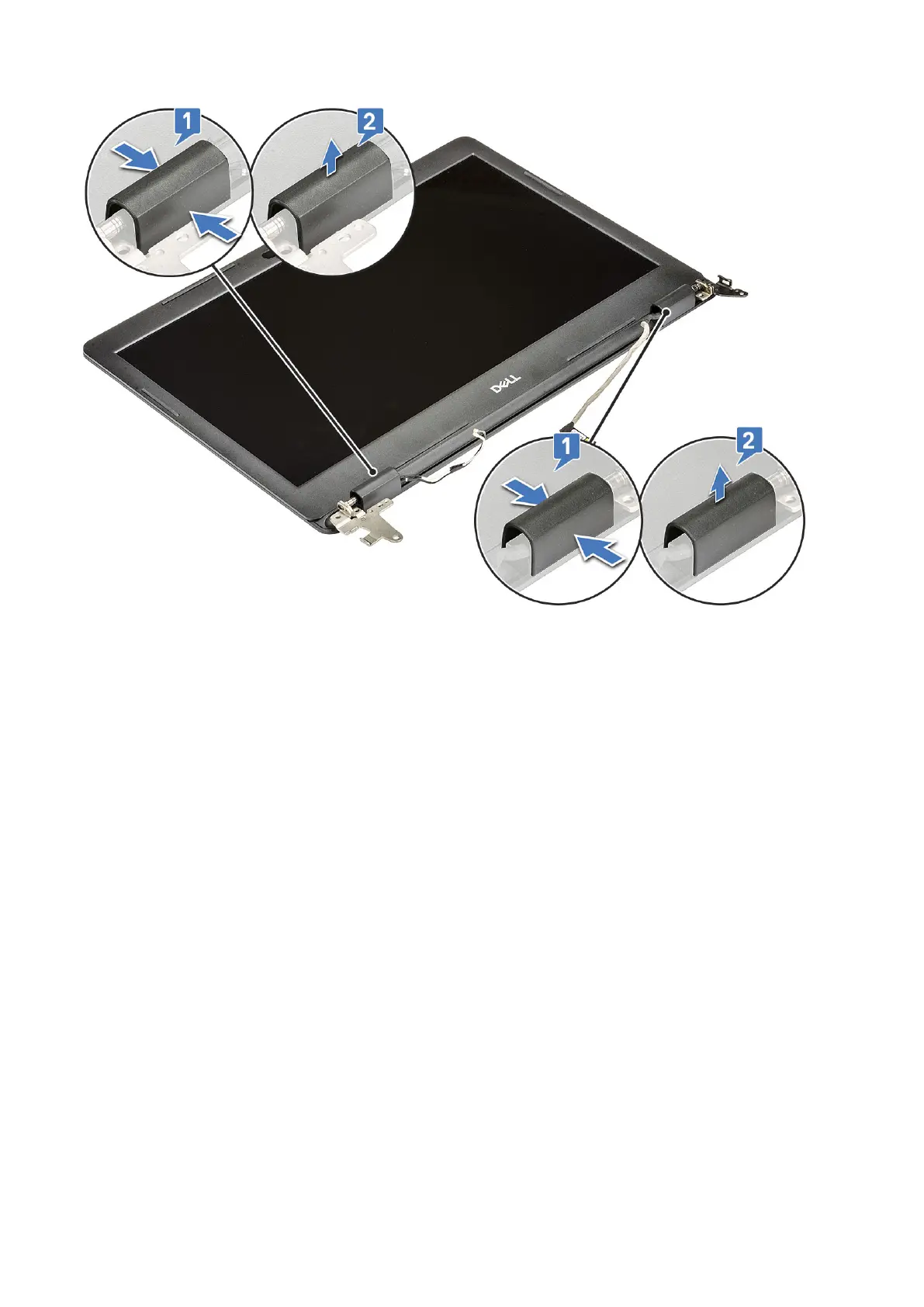

Installing display hinge cover
1. Place the display hinge cover on the display hinge and press to secure it to the system.
2. Install the:
a. display assembly
b. Installing the WWAN daughterboard on page 20
c. Installing the WLAN card on page 19
d. hard drive
e. battery
f. base cover
3. Follow the procedure in After working inside your computer.
LCD Bezel
Removing the LCD bezel
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. hard drive
d. Removing the WLAN card on page 18
e. Removing the WWAN daughterboard on page 19
f. display assembly
g. display hinge cover
Disassembly and reassembly
49
