Speakers
Removing the speakers
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.

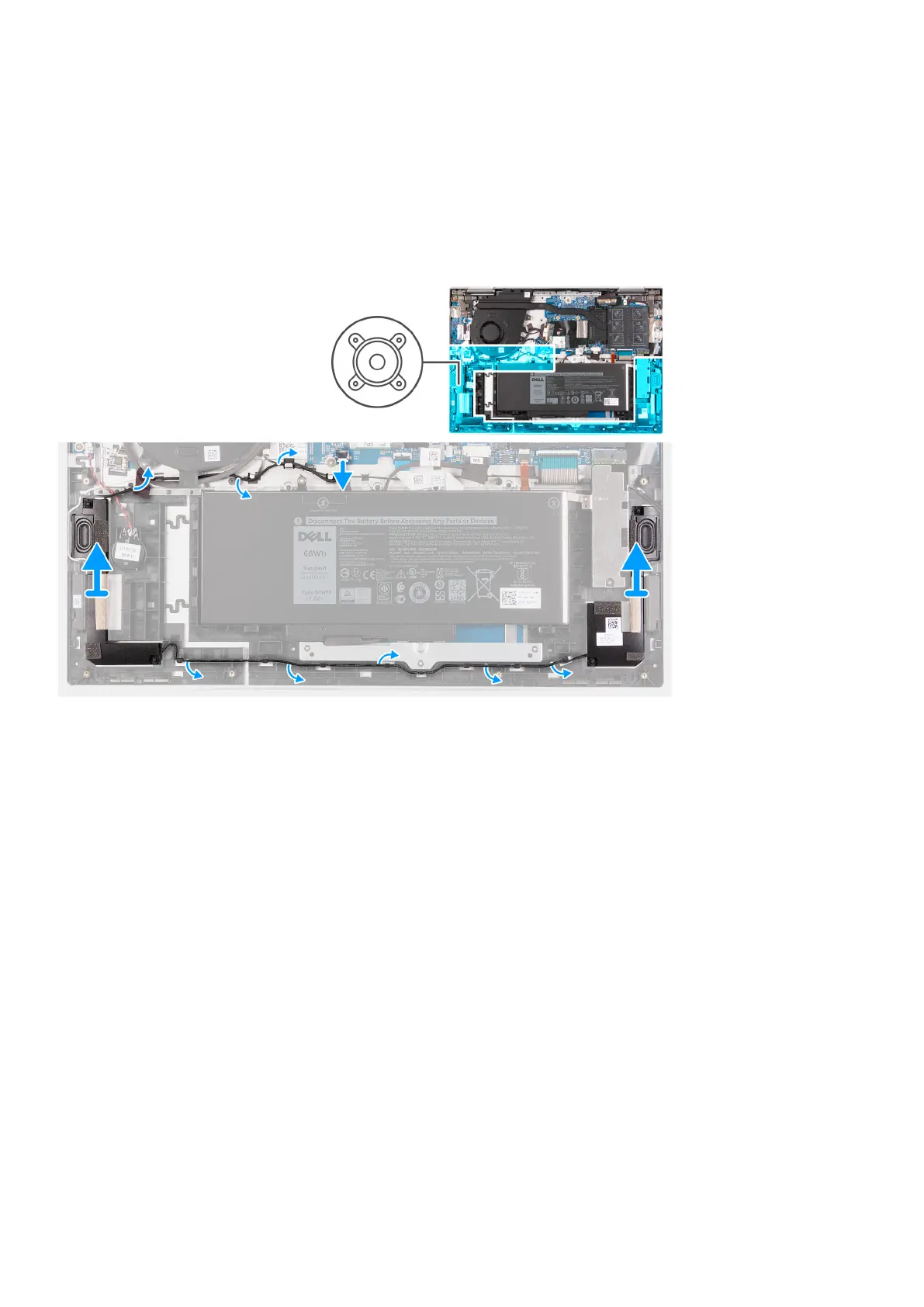

The following image indicates the location of the speakers and provides a visual representation of the removal procedure.
1. Disconnect the speaker cable from the system board.
2. Note the speaker cable routing, and remove the speaker cable from the routing guides on the palm-rest and keyboard
assembly.
3. Lift the speakers along with the cables, off the palm-rest and keyboard assembly.
Installing the speakers
If you are replacing a component, remove the existing component before performing the installation procedure.
The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
