8 Four-Post Rack Installation
Sliding Rails Rack Kit Contents
• One pair of slide assemblies (convertible to RapidRails or VersaRails configuration)
• One cable-management arm
•One tray
• One status indicator cable (if applicable)
• Tie wraps to secure the cables to the cable management arm
• Eight 10-32 x 0.5-inch flange-head Phillips screws (used in VersaRails configuration only)
NOTE: The nonmetric screws described in illustrations and in procedural steps are identified by size and number
of threads per inch. For example, a #10 Phillips-head screw with 32 threads per inch is identified as a 10-32 screw.

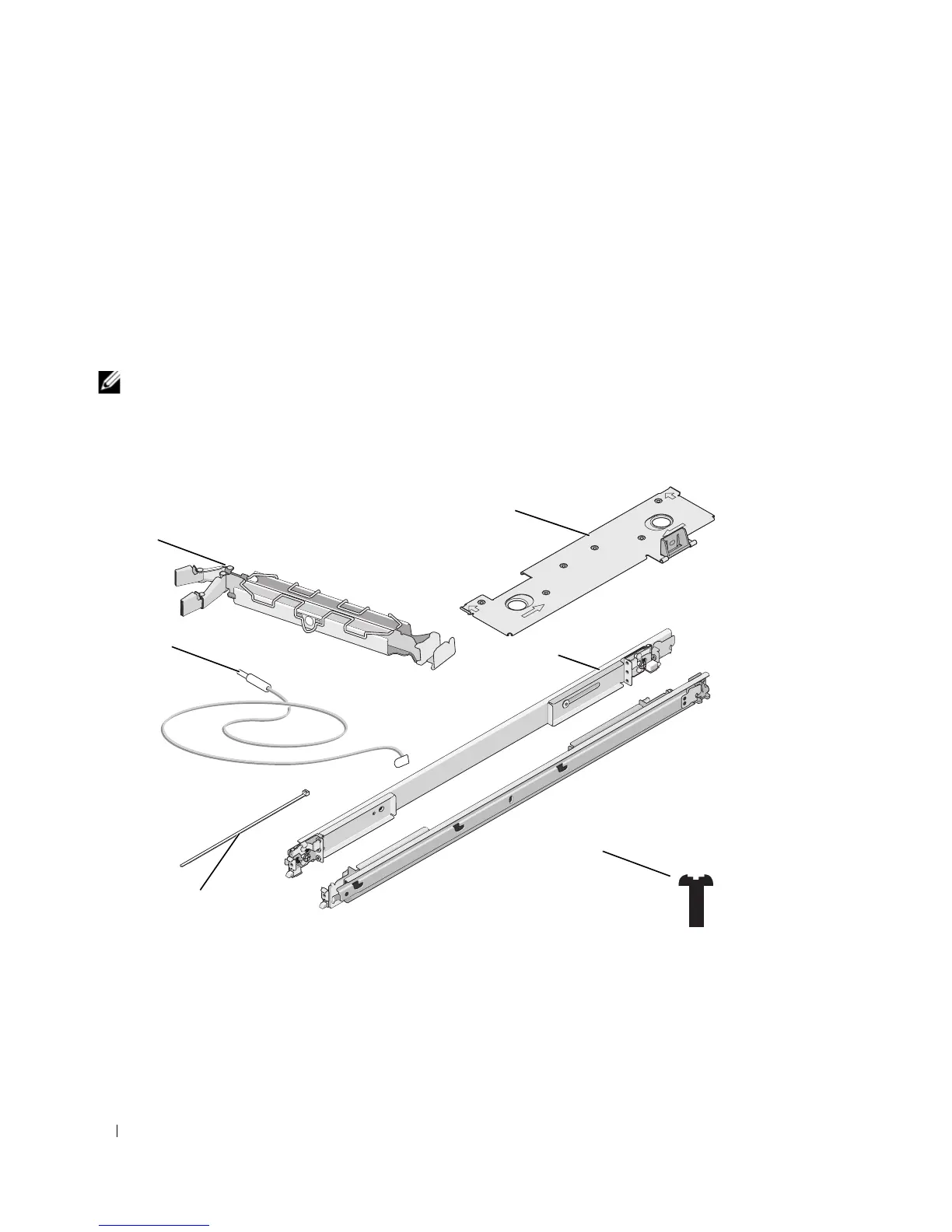

Figure 1-1. Sliding Rails Rack Kit Contents
1 tray 2 slide assemblies (2) 3 10-32 x 0.5-inch flange-head Phillips
screws (8) (VersaRails configuration only)
4 tie wraps 5 status indicator cable
(if applicable)
6 cable-management arm
1
2
3
5
6
4
