6 Cabling Instructions for the –48 VDC Power Supply
Assembling and Connecting the Safety Ground Wire
1
Strip the insulation from the end of the green/yellow wire, exposing approximately 4.5 mm
(0.175 inches) of copper wire.
2
Using a hand-crimping tool, crimp the ring-tongue terminal to the green/yellow wire.
3
Connect the safety ground to the grounding post on the back of the system using a #8-32 nut
equipped with a locking washer (see Figure 1-2).

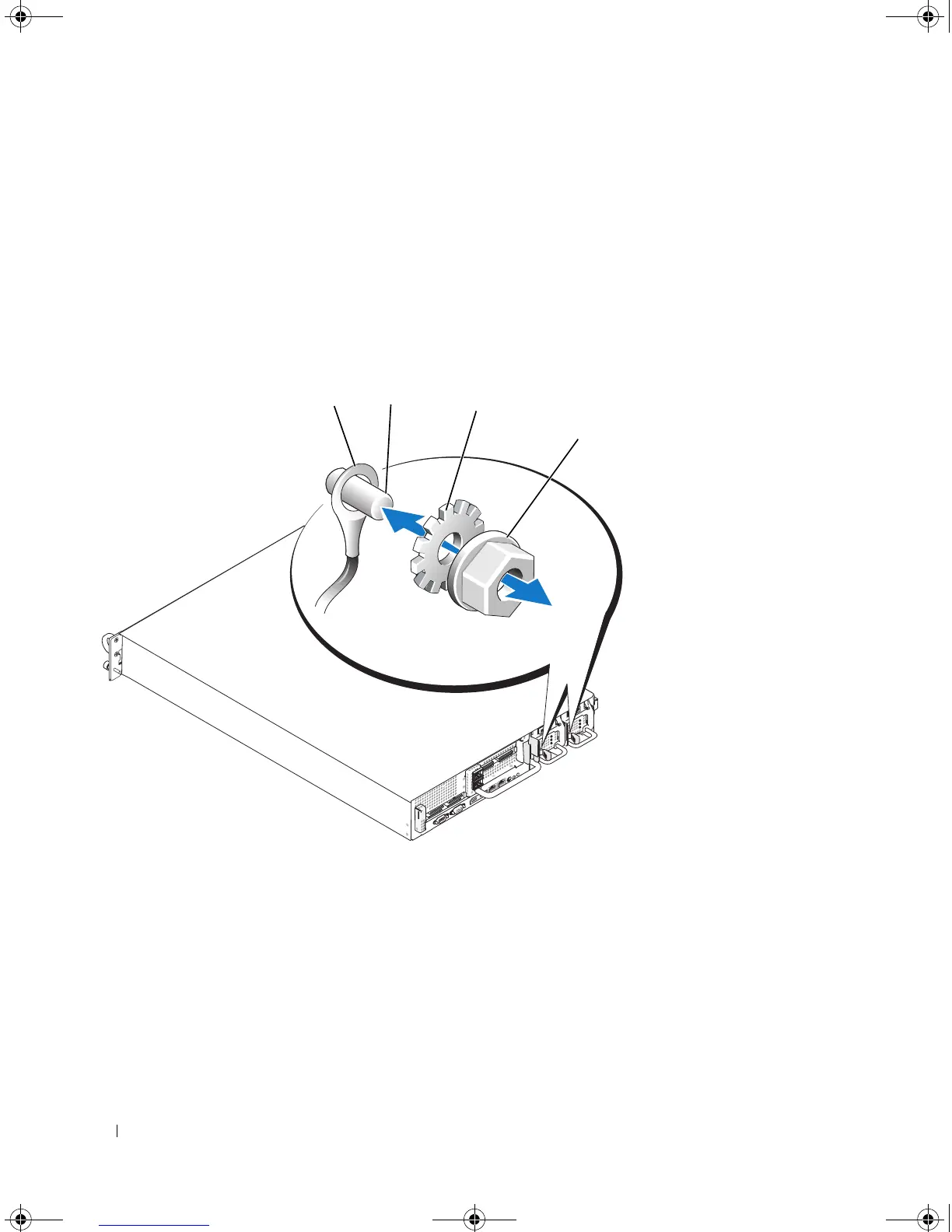

Figure 1-2. Power Supply Safety Ground
Connecting the –48 VDC Power Cable
To connect the –48 VDC power cable, plug the –48 VDC power cable into the system power supply.
1 green/yellow safety ground 2 grounding post 3 locking washer
4 #8-32 nut
1
2
3
4
