Dell PowerEdge C6220 II Getting Started

Getting Started With Your System | 7

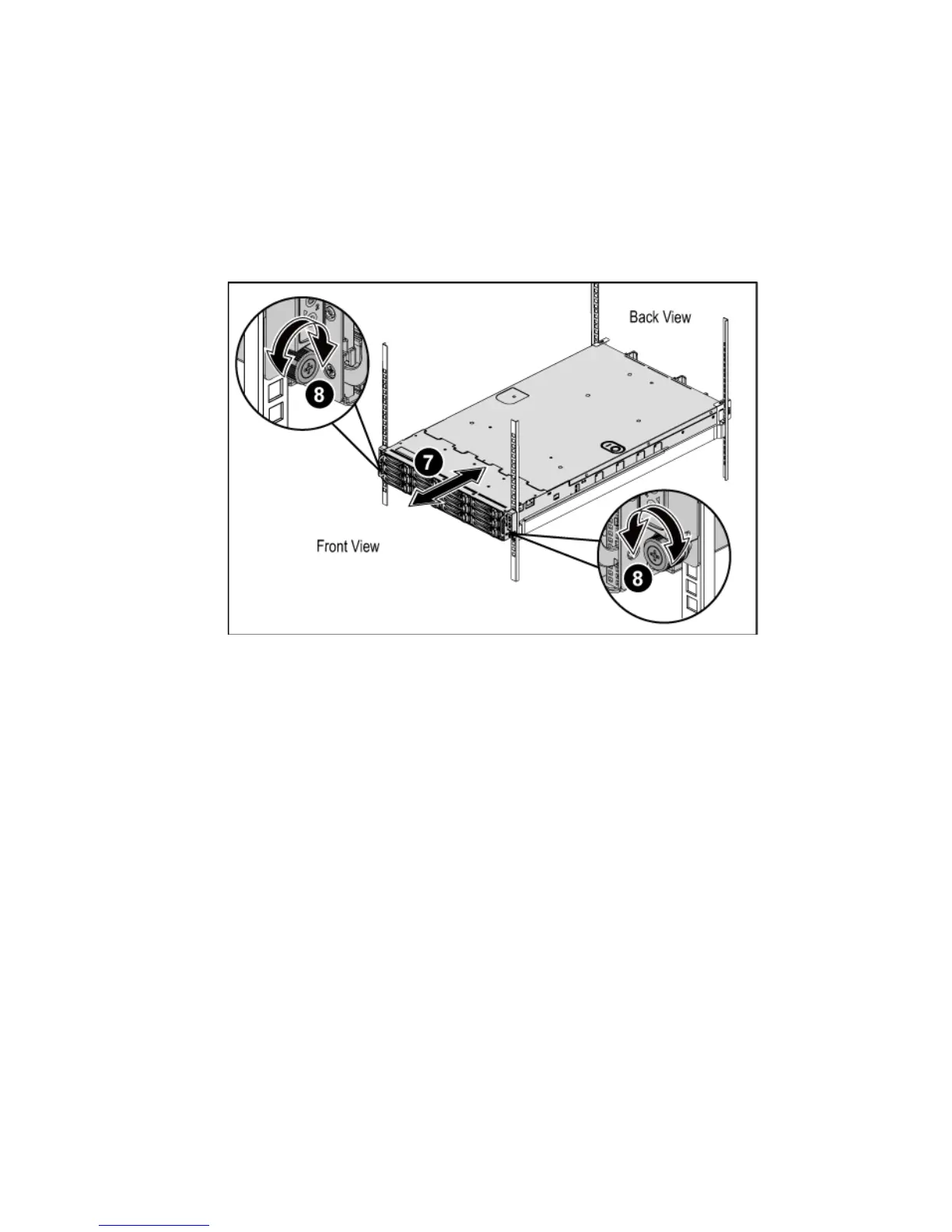

7 Slide the system into the rack. See Figure 4.
8 Tighten the thumbscrews to secure the ears of the system to the front
of t he rack flanges.
Figure 4. Installing the Chassis onto the Rack.

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
