Dell PowerEdge FC430 User Manual

NOTE: For more information on the interposer connections, refer to the Dell PowerEdge FX2
and FX2s Enclosure Owner’s Manual at dell.com/poweredgemanuals.

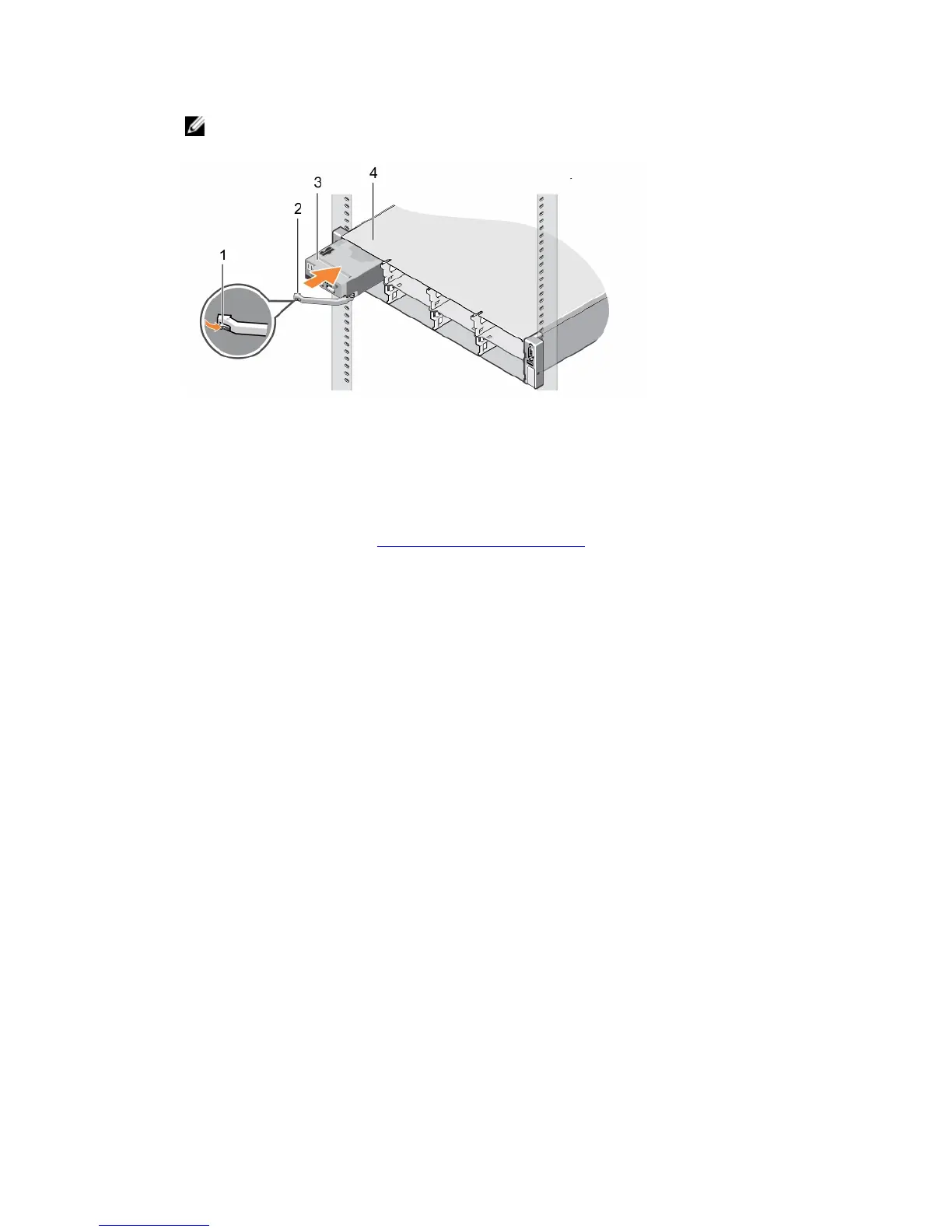

Figure 5. Removing and installing a sled
1. release button 2. sled handle
3. sled 4. FX2 or FX2s enclosure
Next steps
1. Follow the procedure listed in After working inside your system.
Installing a sled
1. Press the release button on the sled handle to the open position.
2. Align the sled with the bay on the enclosure.
3. Slide the sled into the enclosure until the sled connectors are firmly engaged with the interposer
connectors.
The sled handle rotates toward the enclosure as the sled slides into the enclosure.
4. Press the sled handle to closed position until the release button clicks into place.
5. Turn on the sled.
36
