Removing the CMC module
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that are shipped with your product.
NOTE: You must remove the CMC module to replace a faulty module or service other components inside the system.
NOTE: The CMC module is hot-swappable.
Ensure that you read the Safety instructions on page 33.
Steps
1. Disconnect the cables attached to the CMC module.
2. Press the release latch and slide the CMC module out of the enclosure.

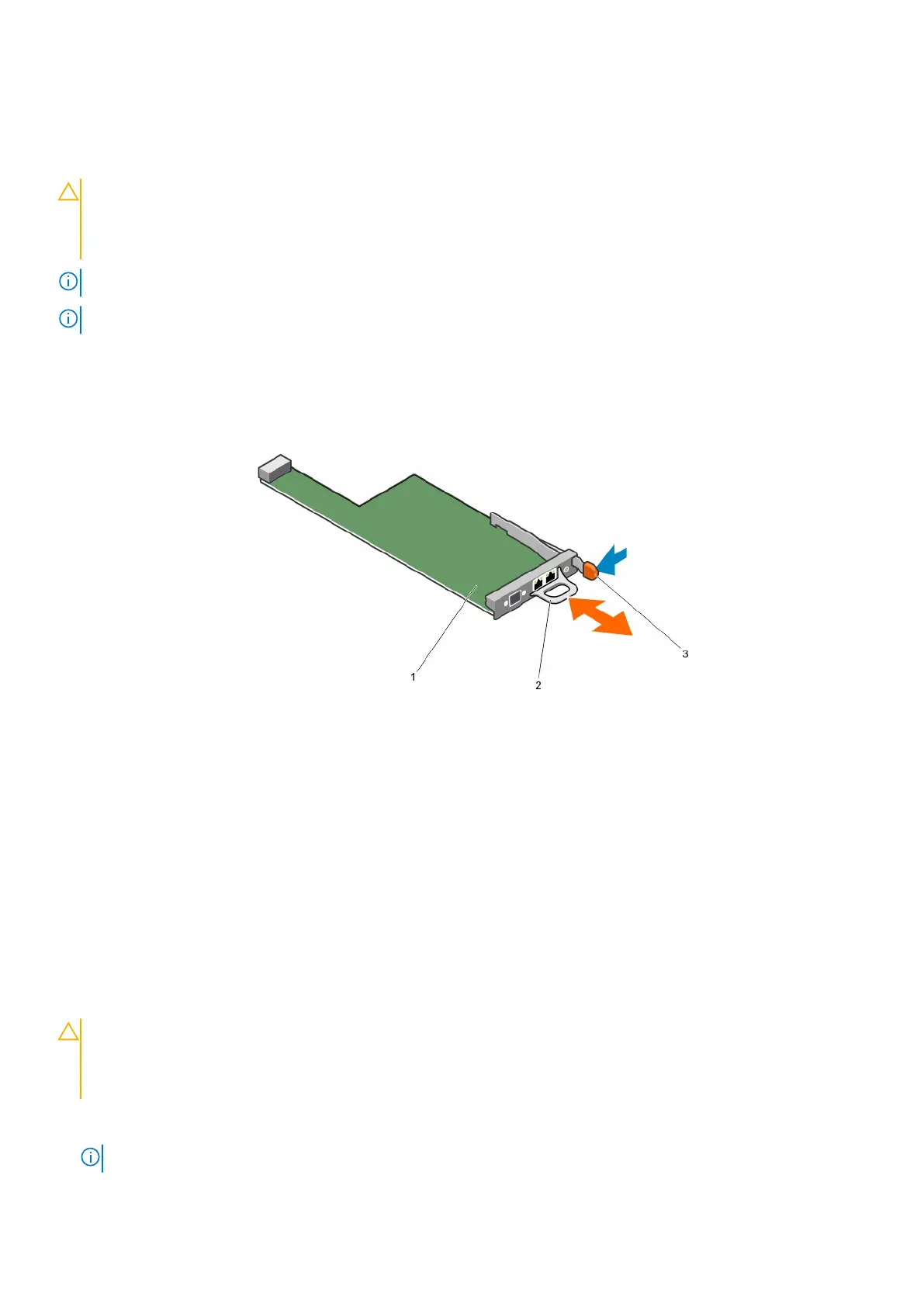

Figure 37. Removing and installing the CMC module
a. CMC module
b. CMC module handle
c. release latch
Next steps
Install the CMC module.
Related tasks
Installing the CMC module on page 42
Installing the CMC module
Prerequisites
CAUTION:
Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that are shipped with your product.
1. Ensure that you read the Safety instructions on page 33.
2. Remove the CMC module.
NOTE: You must remove the CMC module to replace a faulty module or service other components inside the system.
42 Installing and removing PowerEdge FX2/FX2s enclosure components
