Steps
1. Loosen the two spring-loaded screws that secure the fan interface board to the system.
2. Holding the fan interface board by the grips, pull the fan interface board out of the system.

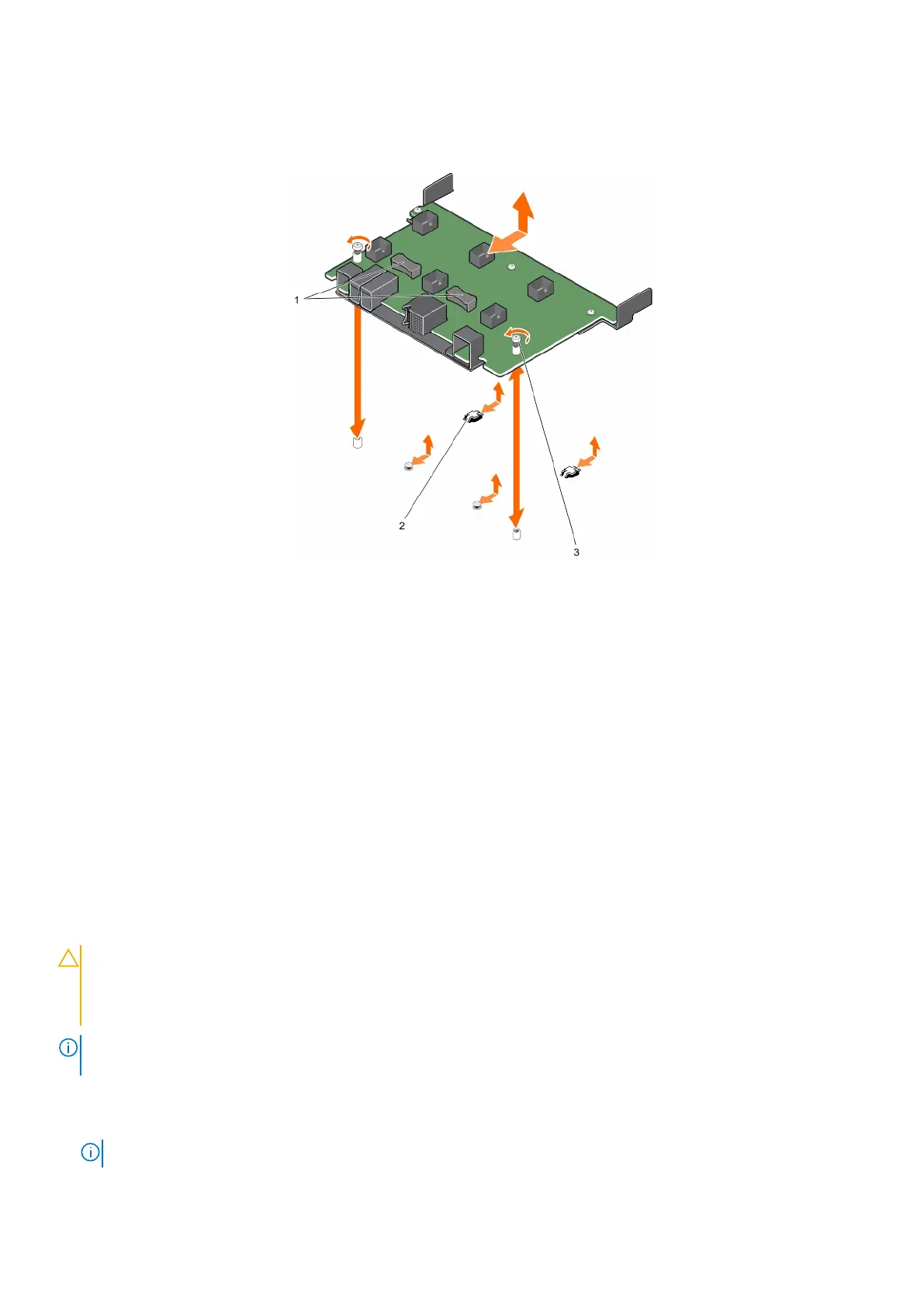

Figure 47. Removing and installing the fan interface board
a. grip (2)
b. notch (4)
c. spring-loaded screw (2)
Next steps
Install the fan interface board.
Related tasks
Installing the fan interface board on page 59
Removing the system cover on page 34
Removing a cooling fan on page 52
Removing the cooling-fan cage on page 54
Installing the fan interface board
Prerequisites
CAUTION:
Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that are shipped with your product.
NOTE: This is a field replaceable unit (FRU). Removal and installation procedures must be performed only by Dell certified
service technicians.
1. Ensure that you read the Safety instructions on page 33.
2. Follow the procedure listed in Before working inside your system on page 33.
3. Remove the fan interface board.
NOTE: You must remove the fan interface board to replace a faulty board or service other components in the system.
Installing and removing PowerEdge FX2/FX2s enclosure components 59
