11G
- Qlogic QME2572 FC8
- Emulex LPe1205-M FC8
12G
- Qlogic QME2662 FC16
- Emulex LPm16002 FC16
- Qlogic QME2572 FC8
- Emulex LPe1205-M FC8
*The M6505 requires the
enhanced midplane (1.1).
The switch will not
function with the original
midplane (1.0).
Does not support 4Gb
Mezzanine cards.
Available Models - Brocade M6505
• 24 ports with eight SFP+ transceivers
• 24 ports with four SFP+ transceivers
• 12 ports with two SFP+ transceivers
(12 port model expands to 24 ports with
on-demand license)

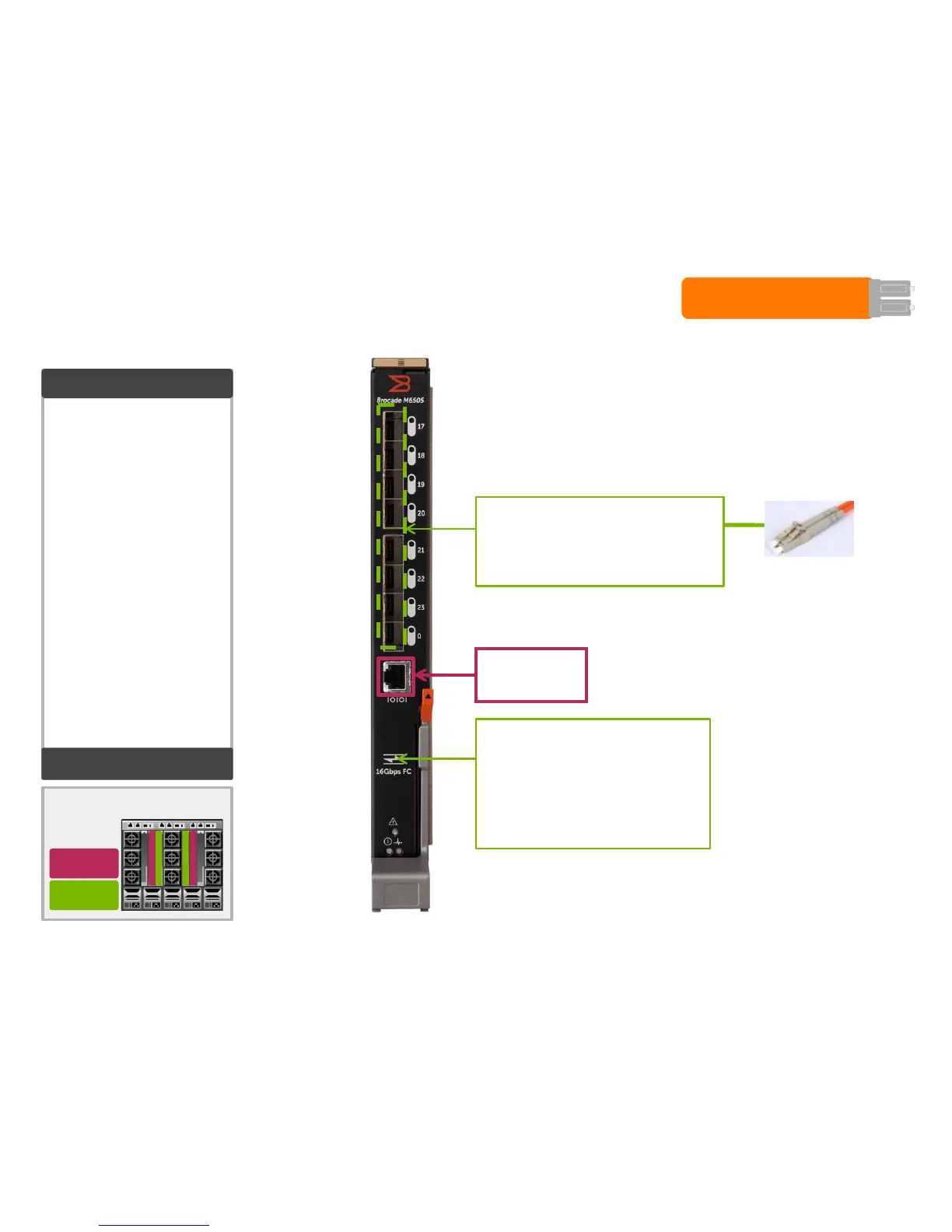

Brocade M6505
16Gb switch
Fibre Channel
Designed for I/O bays
B
1
/B
2
C
1
/C
2
B1
B2
C1
C2
33
Dell M-Series Blade I/O Guide
Secondary
Management
Serial Port
Adapters
Brocade Transceivers
Brocade SWL, LWL or ELWL 16Gb SFP+ Optics
Brocade SWL, LWL or ELWL 8Gb SFP+ Optics
Brocade SWL, LWL or ELWL 4Gb SFP+ Optics
Note: Requires SFP LC connector
Cables
More details in
Adapter Portfolio section
