10 Rack Installation Guide
VersaRails Rack Kit Contents
The VersaRails rack kit includes the following items (see Figure 1-2):
• One pair of VersaRails assemblies
• One strain-relief bar
• Clip nuts (2)
• I/O cable enumerators (12)
• Velcro tie wraps (15)
• Twelve 10-32 x 0.5-inch flange-head Phillips screws
NOTE: Each rack kit contains the maximum number of Velcro tie wraps and I/O
cable enumerators you will need for a fully loaded system.
NOTE: Nonmetric screws are identified in this document by size and number of
threads per inch. For example, a #10 Phillips-head screw with 32 threads per inch
is identified as a 10-32 screw.

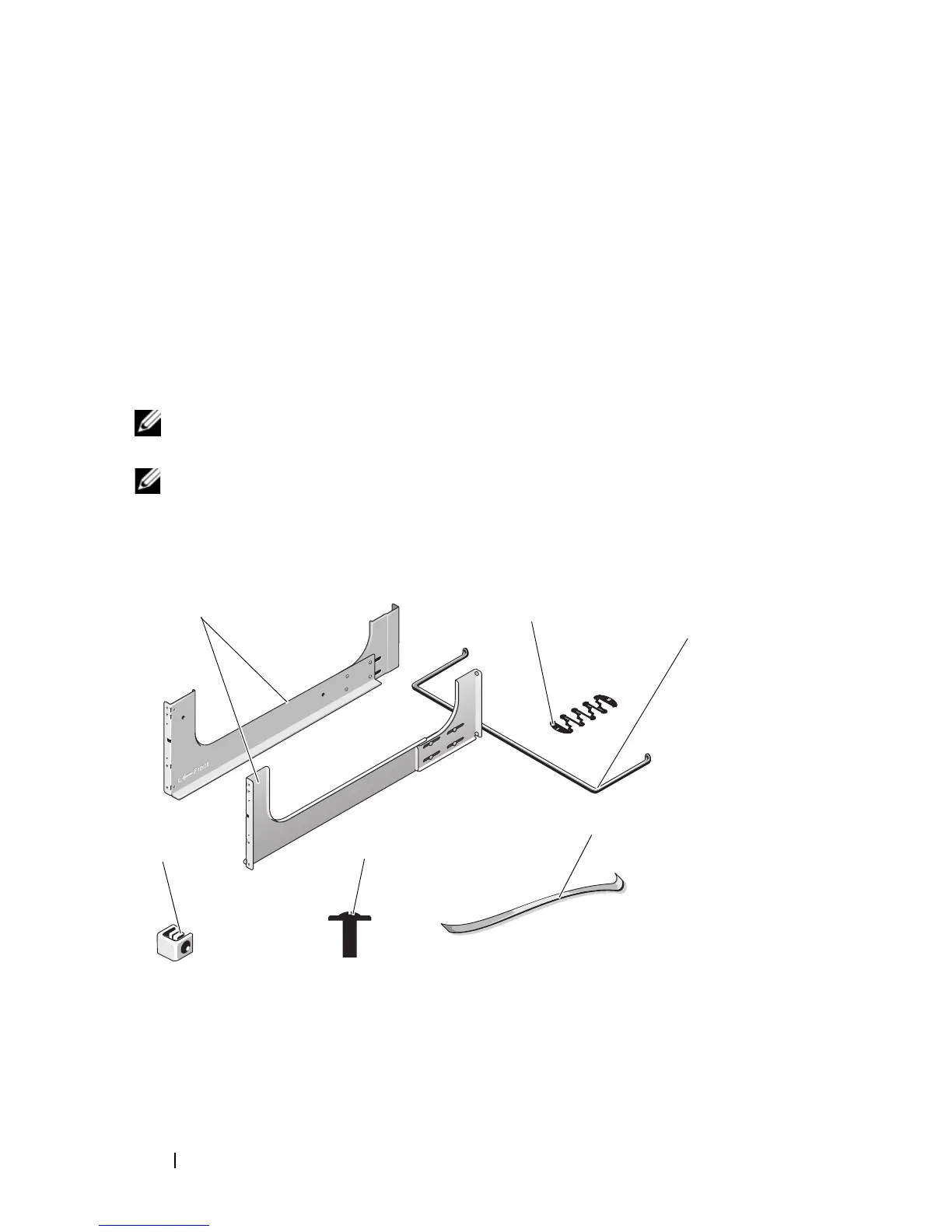

Figure 1-2. VersaRails Rack Kit Contents
1 VersaRails
assemblies
2 I/O cable enumerators (12) 3 strain-relief bar
4 Velcro tie wraps
(15)
5 flange-head 10-32 x 0.5-inch
Phillips screws (12)
6 clip nuts (2)
3
1
2
4
6
5
