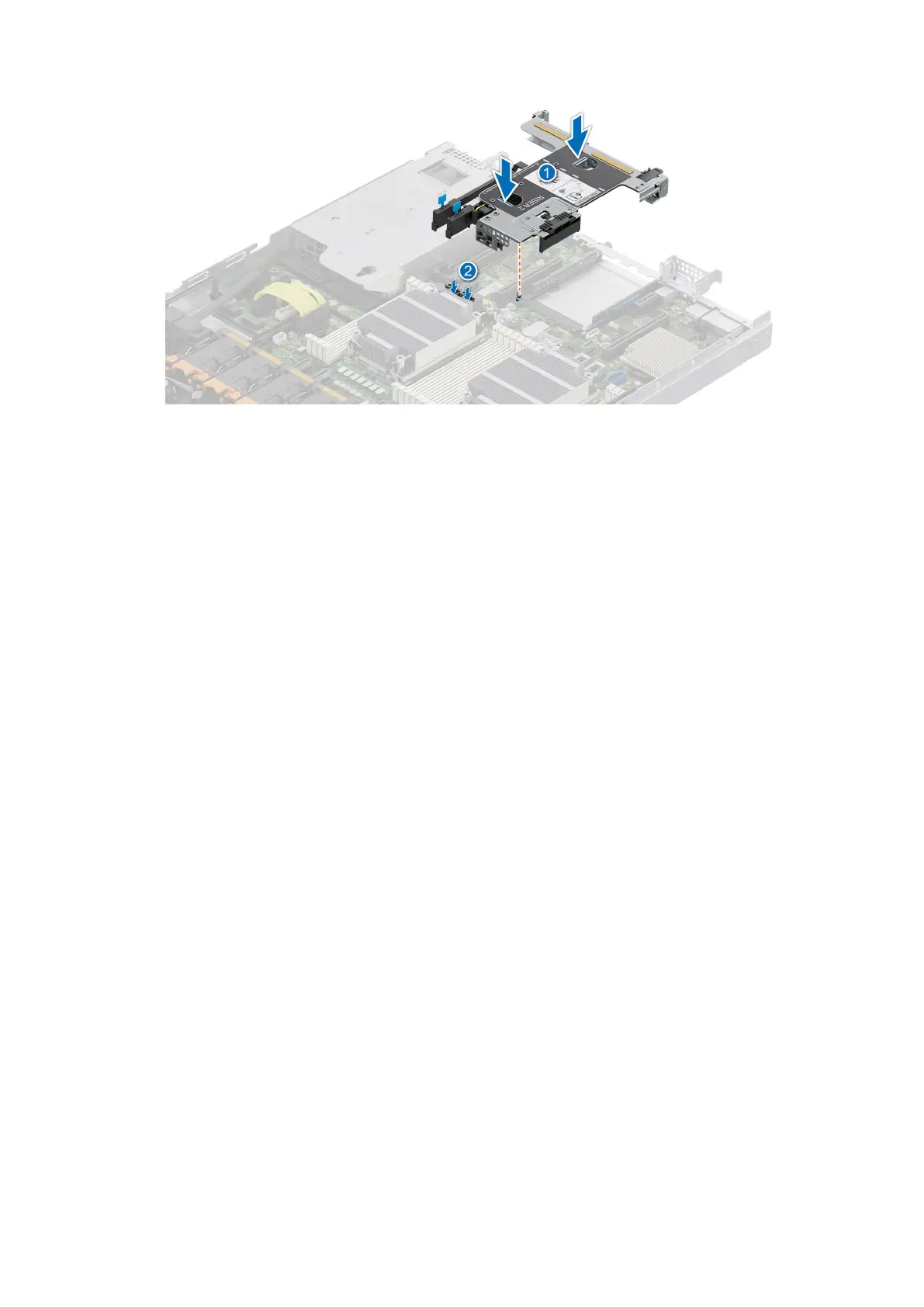

Figure 90. Installing the Riser 2e
Next steps
1. Install the air shroud.
2. Follow the procedure listed in After working inside your system.
3. Install any device drivers required for the card as described in the documentation for the card.
Removing expansion card from the expansion card riser
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system .
3. Remove the air shroud.
4. Remove the expansion card risers.
Steps
1. Pull and lift up the expansion card retention latch lock to open.
2. Hold the expansion card by its edges and pull the card until the card edge connector disengages from the expansion card
connector on the riser.
128
Installing and removing system components
