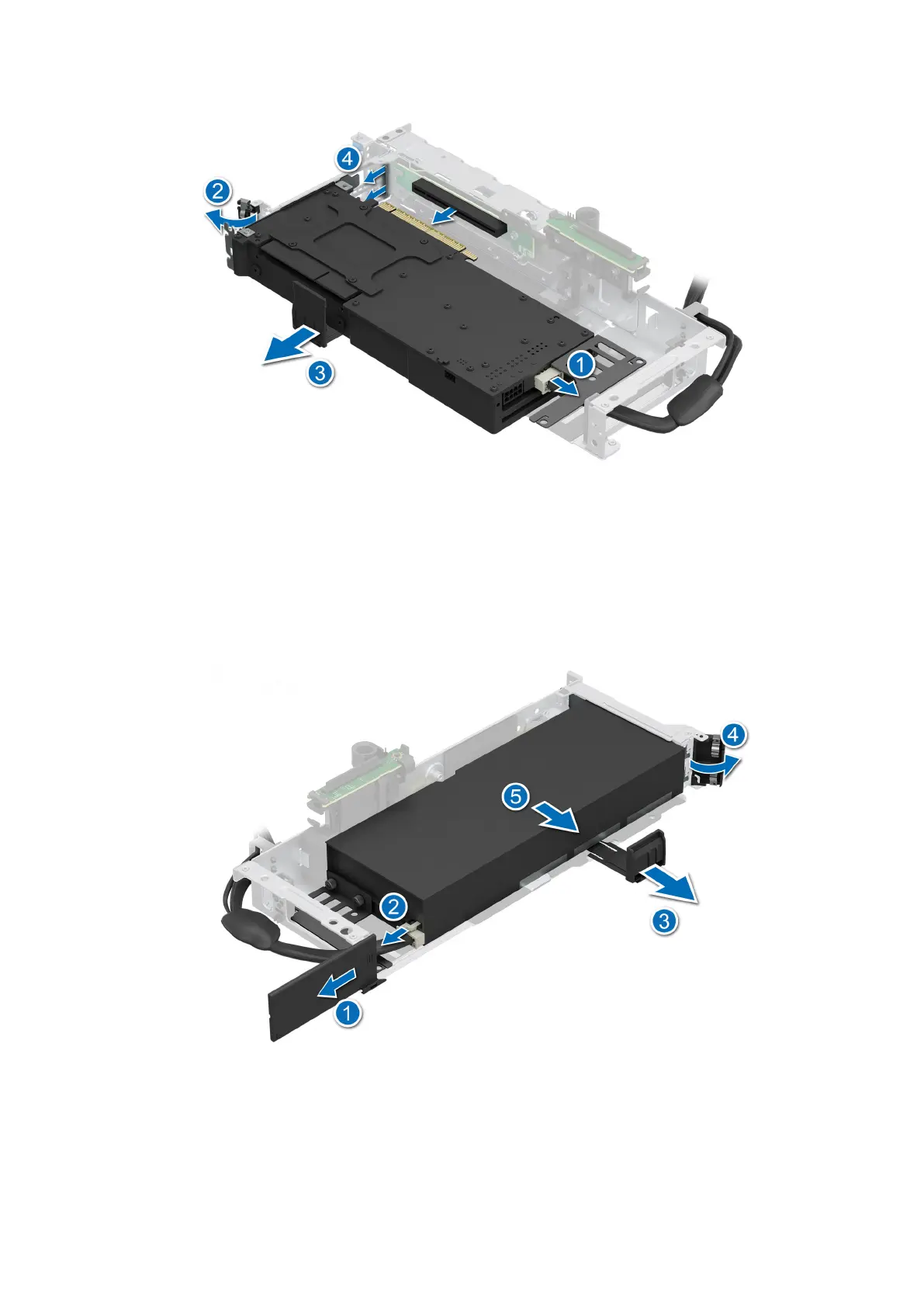

Figure 200. Removing GPU from Riser 1

2. To remove the GPU from Riser 4:

a. Slide the expansion card latch on the riser.

b. Press the tab, and pull the card holder from the riser.

c. Tilt the expansion card holder latch on the riser.

d. Hold the GPU card by the edges and pull the card from the riser.

e. Disconnect the GPU power cable from the GPU card.

Figure 201. Removing GPU from Riser 4

3. If removing the GPU permanently, install a filler bracket.

Installing and removing system components

259
