48 Installing System Components

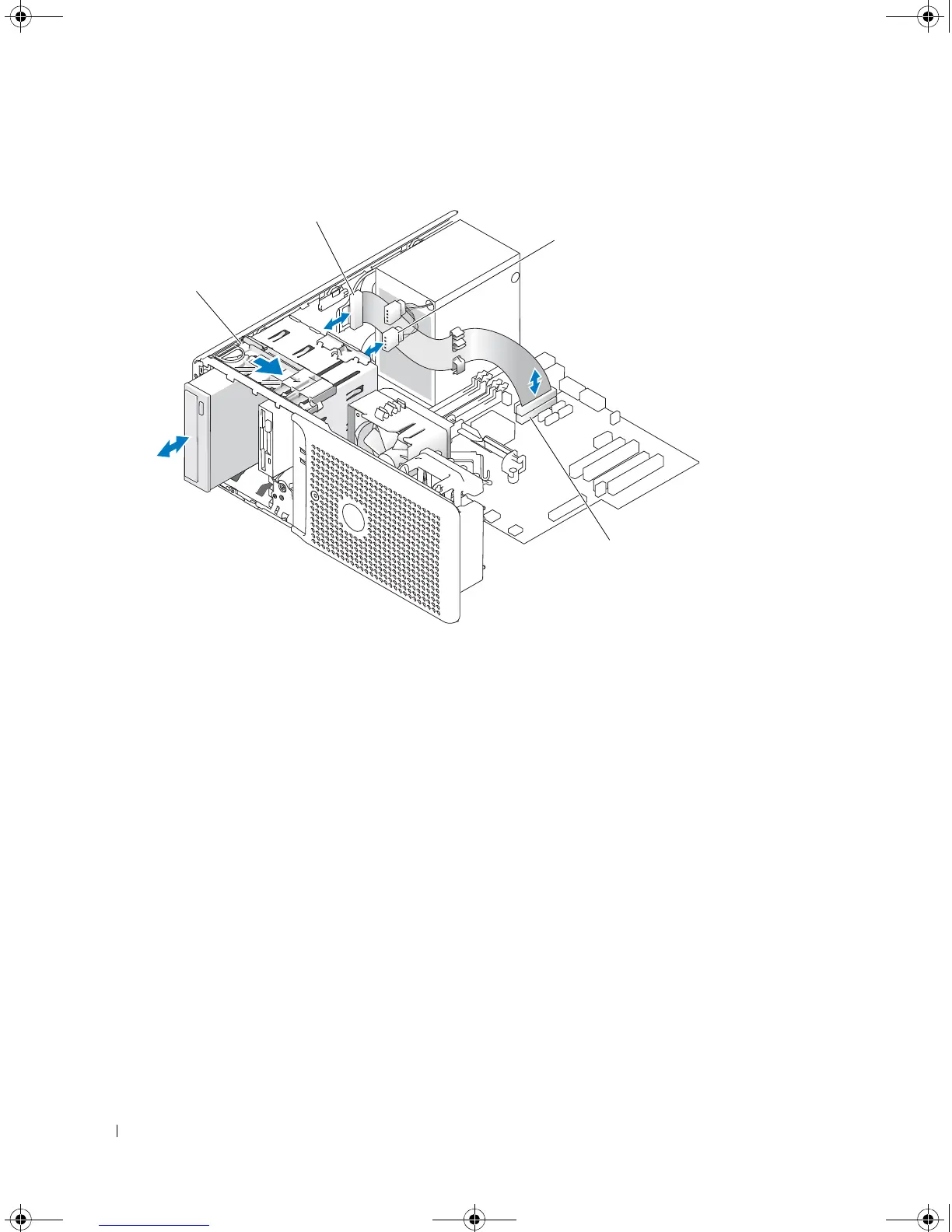

Figure 3-7. Removing and Installing an Optical or Tape Drive
7
If you are installing another drive in the bay, see "Installing an Optical or Tape Drive" on page 49.
8
If the drive is being permanently removed, install an insert on front drive bezel. See "Replacing an
Insert on the Front Drive Bezel" on page 44.
9
Replace the front drive bezel. See "Replacing the Front Drive Bezel" on page 43.
10
Close the system. See "Closing the System" on page 41.
11
Reconnect the system to the electrical outlet, and turn on the system and attached peripherals.
1 sliding plate 2 IDE data cable to drive 3 power cable to drive
4 IDE connector on system
board
