Single Controller Configurations
The following figures show two and four hosts, each connected to only one RAID controller module. The
hosts can share storage space but without redundant paths, if one path fails, the server on that path
would be disconnected from the storage array.

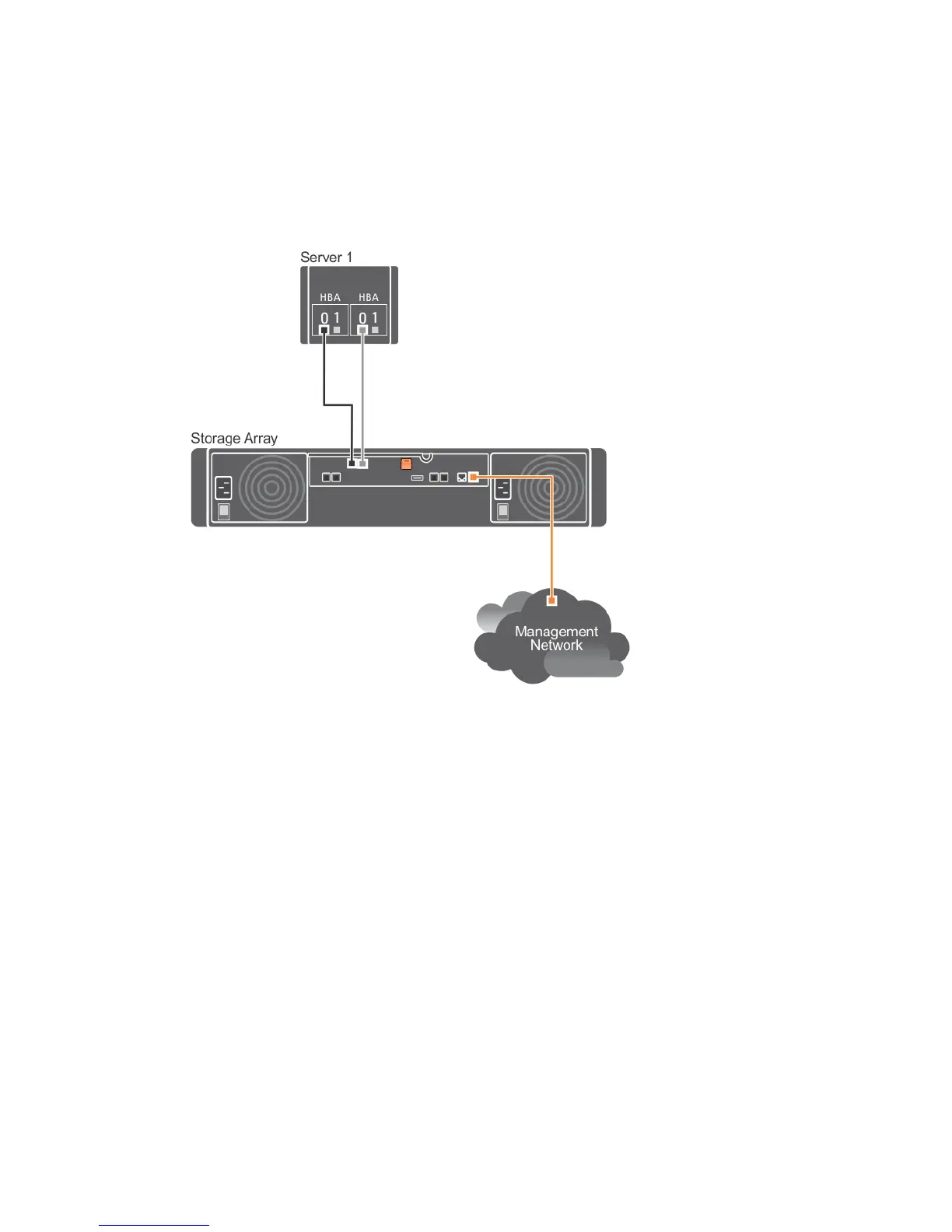

Figure 2. One Host Connected to a Single Controller
10
