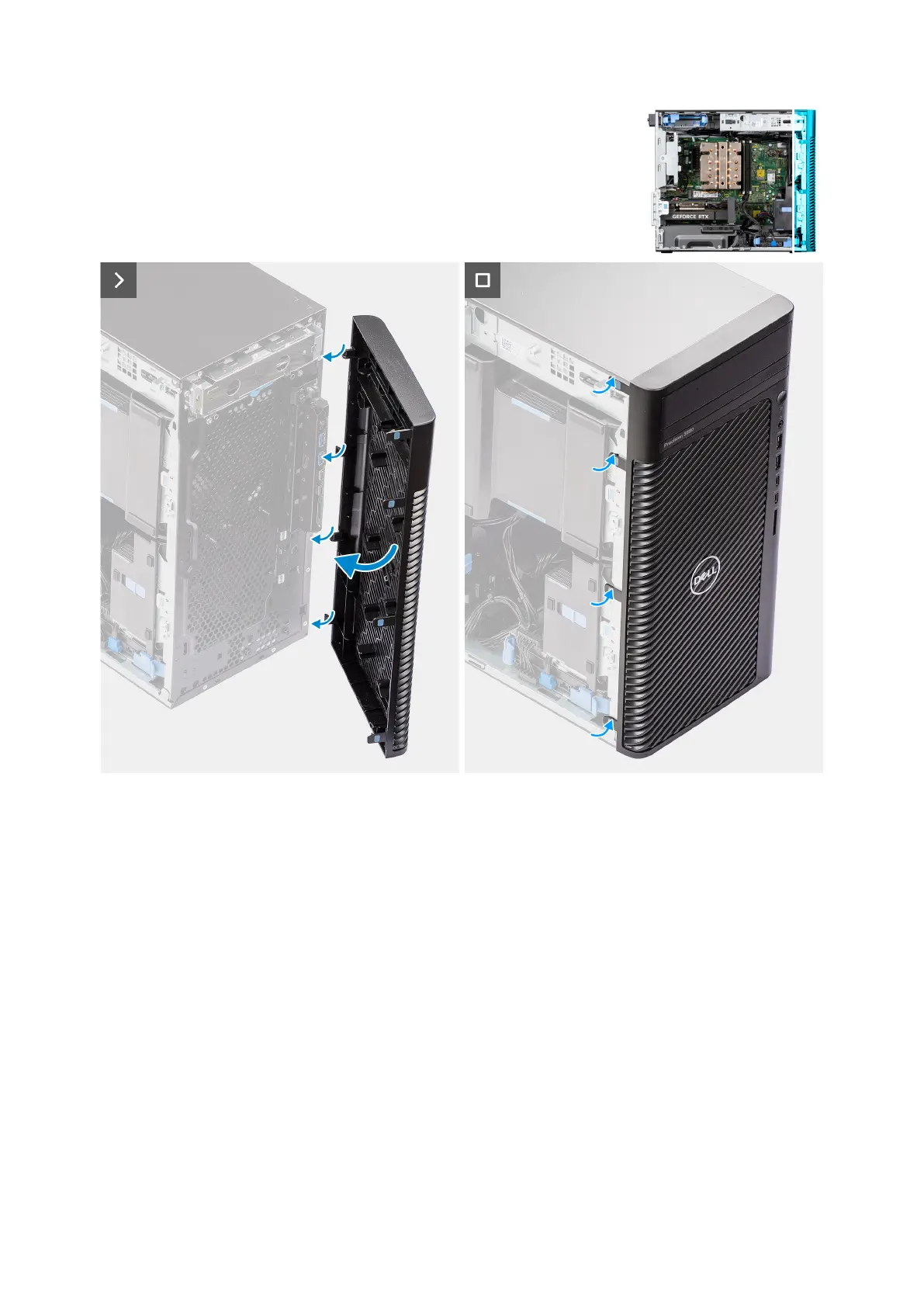

Figure 13. Installing the front bezel
Steps
1. Position the front bezel to align the tabs on the bezel with the slots on the chassis.
2. Press the bezel until the tabs clicks into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Air shroud
Removing the air shroud (500W/1000W PSU)
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
42
Removing and installing Customer Replaceable Units (CRUs)
