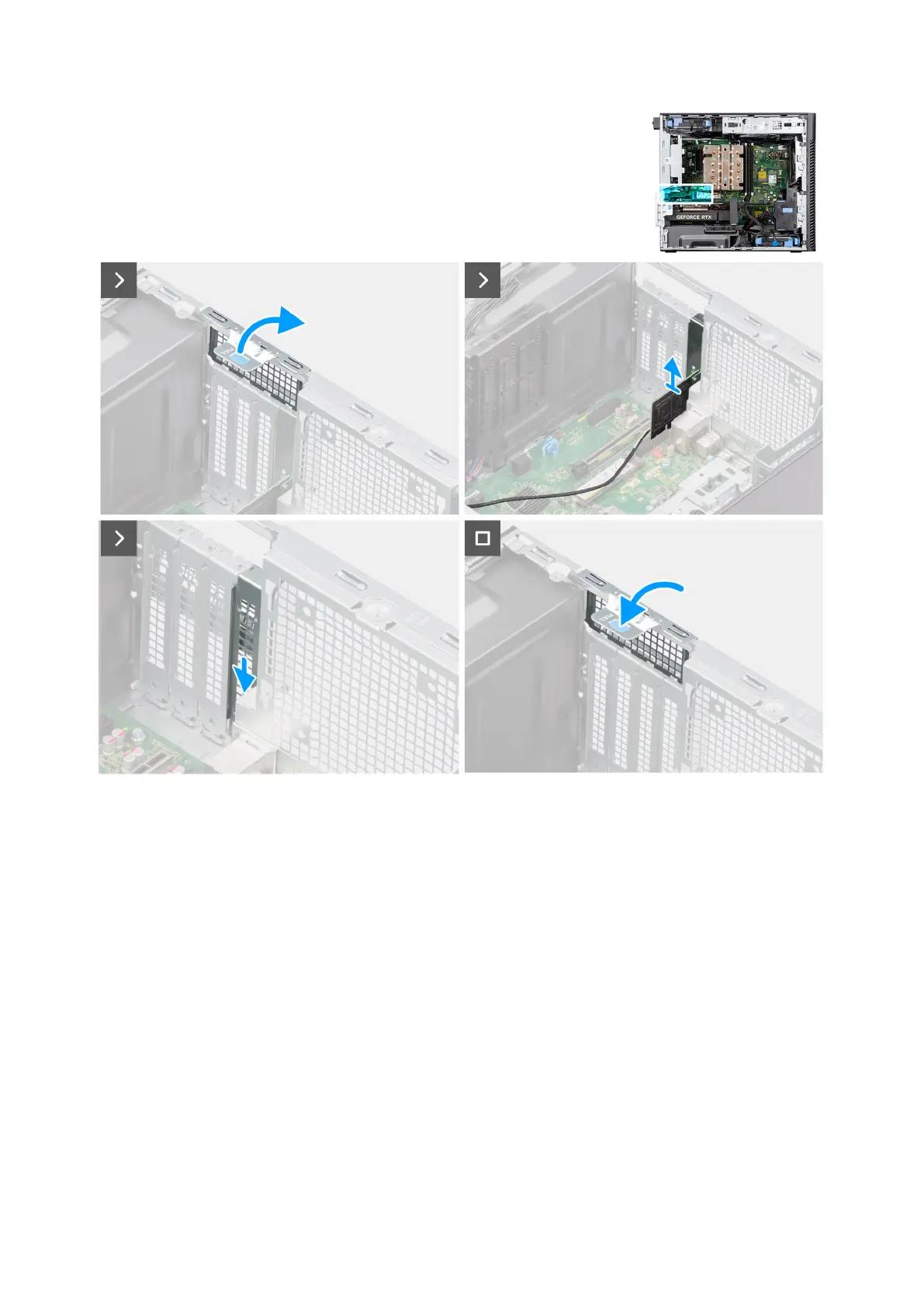

Figure 36. Removing the PCIe external antenna
Steps
1. Lift the pull tab to open the PCIe door.
2. Lift the PCIe card from its slot.
3. Insert the blank filler.
4. Lift the pull tab to close the PCIe door.
Installing the PCIe external antenna
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the PCIe external antenna and provide a visual representation of the installation
procedure.
