Steps
1. Remove the six screws (M6x32) that secure the left rail-kit to the chassis.
2. Remove the rail-kit from the chassis.

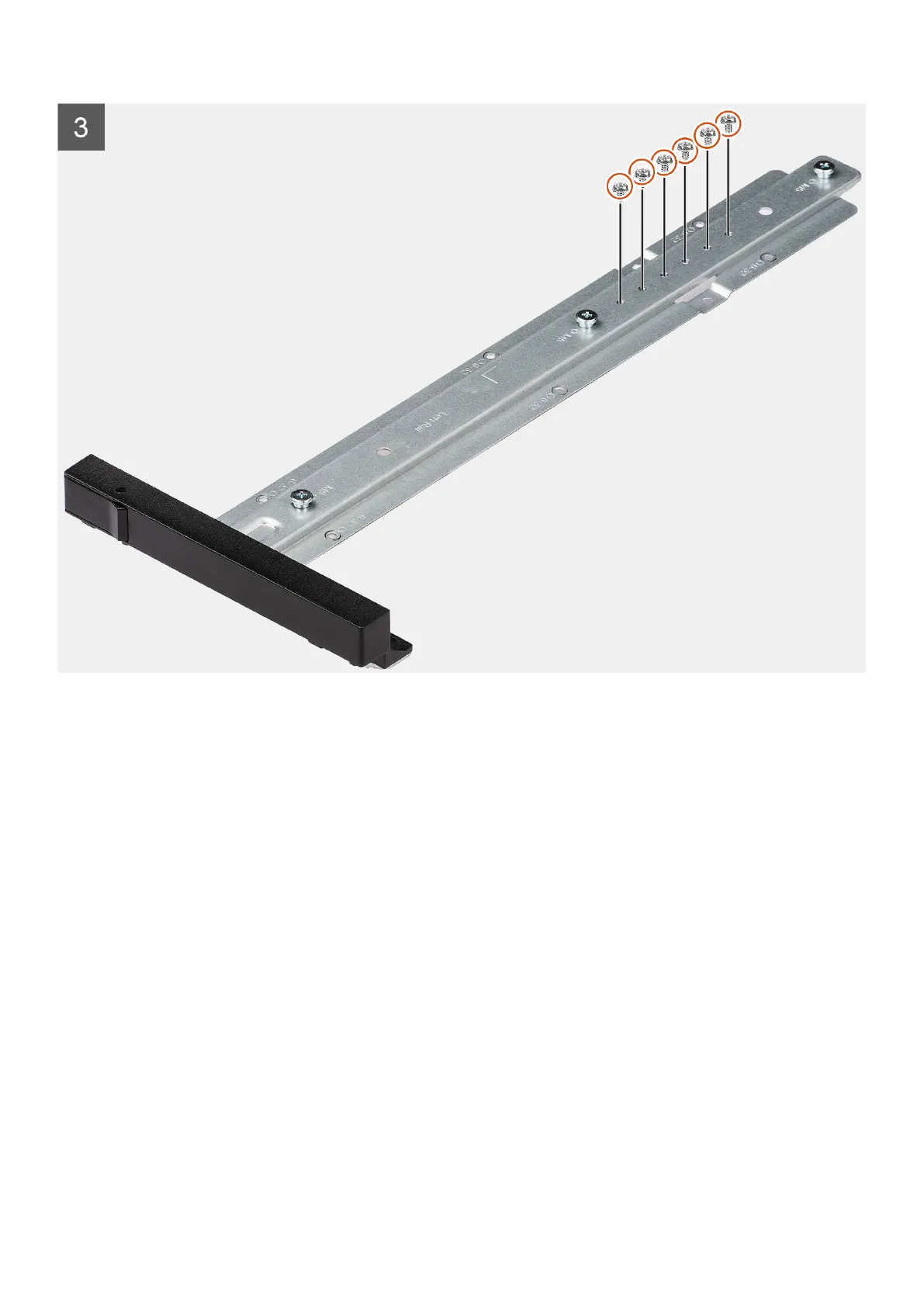

3. Replace the four screws (M6x32) to the rail-kit.
Installing the left rail-kit
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the left rail-kit and provide a visual representation of the installation procedure.
Removing and installing components
113
