Steps
1. Disconnect the intrusion-switch cable from the connector on the system board.
2. Remove the cable from the routing point on the system board.
3. Remove the single (M3) screw to remove the intrusion switch and cable from the computer.
Installing the intrusion switch
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

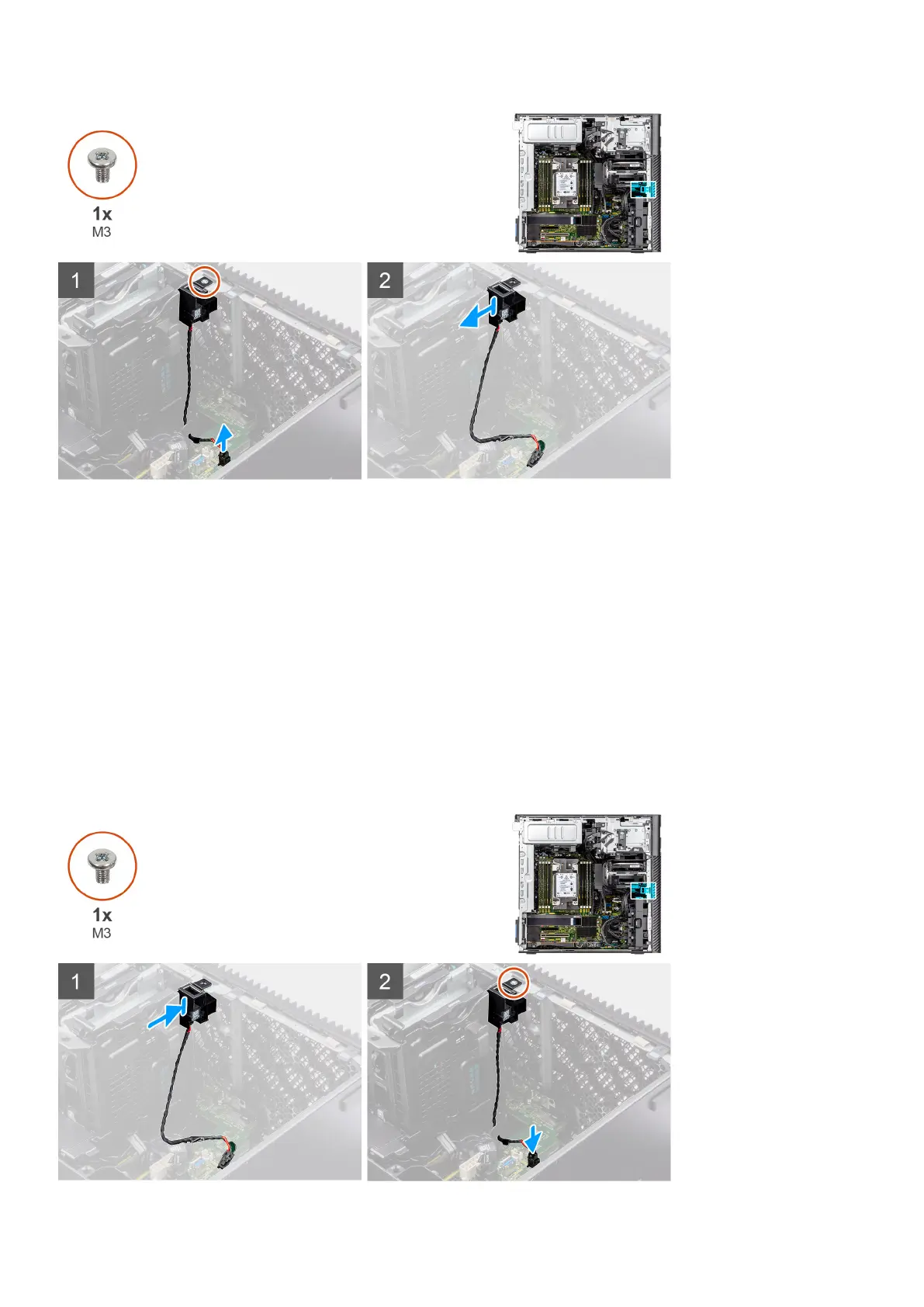

The following images indicate the location of the intrusion switch and provide a visual representation of the installation
procedure.
84
Removing and installing components
