About this task

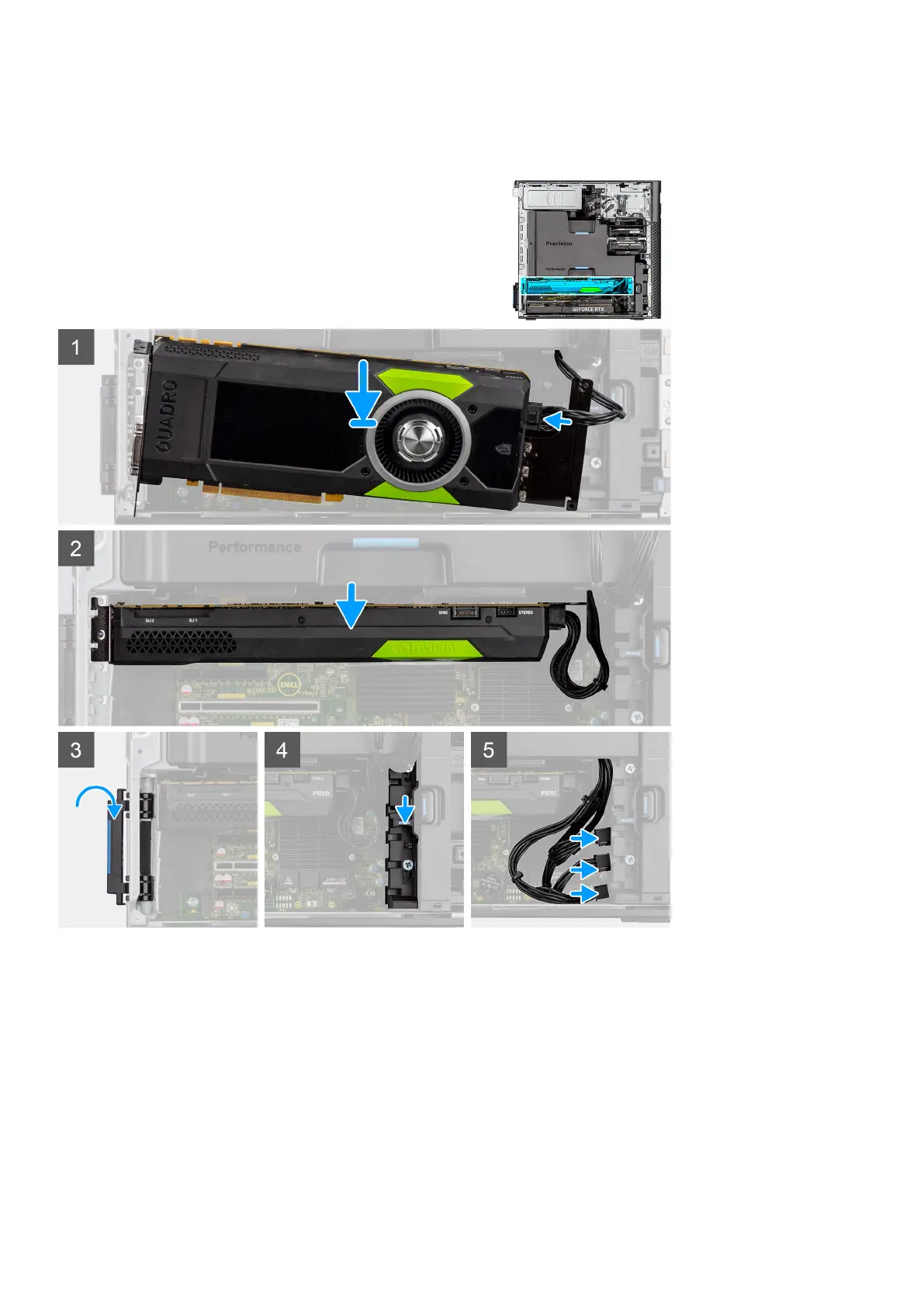

The following images indicate the location of the powered graphics-card and provide a visual representation of the installation
procedure.
Steps
1. Align the powered graphics card with the PCIe slot on the system board.
2. Using the alignment post, push the graphic card connector firmly into the PCIe slot. Ensure that the graphics card is firmly
seated.
3. Slide the release latch down on the PCIe-holder to secure the PCIe-card bracket.
4. Connect the PCIe-power cable to the connectors on the graphics card.
5. Connect the PCIe-power cables to the slots on the PCIe holder.
Next steps
1. Install the air shroud.
2. Install the side cover.
70
Removing and installing components
