Dell Precision 7530 - Page 32

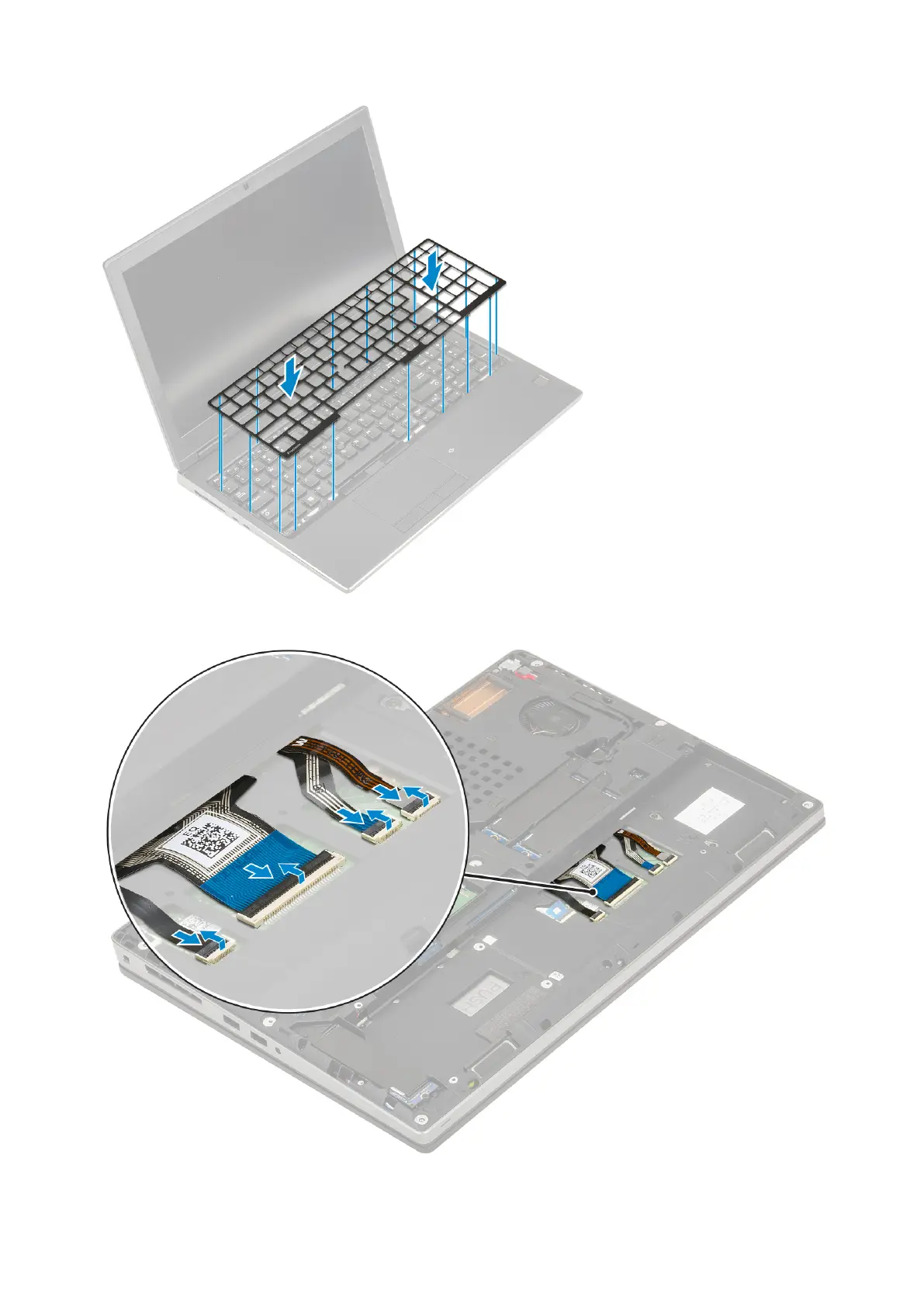

e. Turn-over the system at 90° angle to access the keyboard cables.
f. Connect the keyboard cable, fingerprint cable and fingerprint button cable to the connectors on the system board.
2.
32
Removing and installing components
