Dell Precision R5500 Setup & Features

20. remote system identification light
connector
21. second power supply bay (optional)
22. power connector
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices
information, see www.dell.com/regulatory_compliance.
NOTE: Some devices may not be included if you did not order them.
1. Install the rails and the computer in the rack. See your rack installation
documentation for safety instructions and instructions on installing
your computer in a rack.

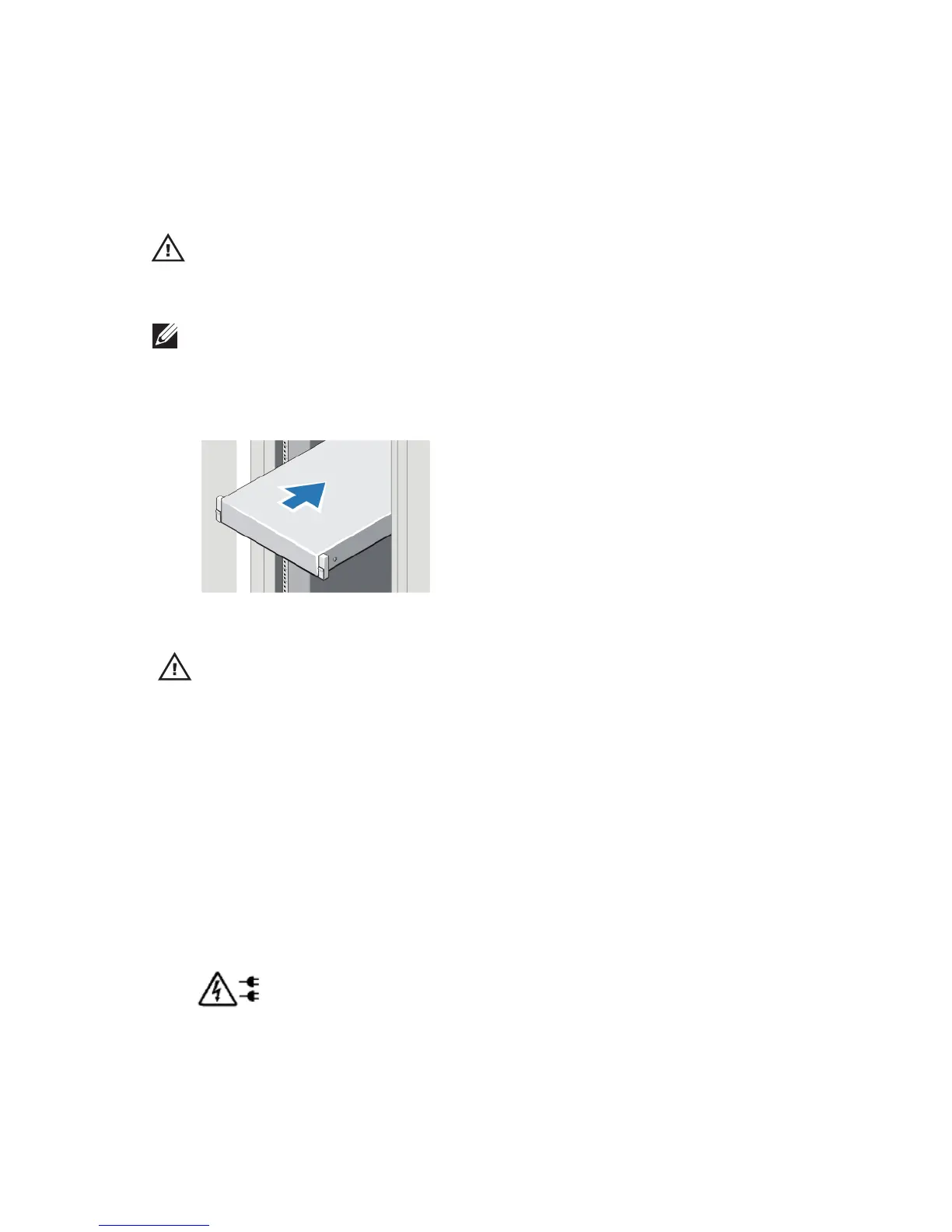

Figure 2. Rack Installation
WARNING: Additional Instructions for Rack-Mounted Systems:
• Your rack kit has been approved only for the rack cabinet provided. It
is your responsibility to ensure that installation of the equipment
into any other rack complies with all applicable standards. Dell
disclaims all liability and warranties with respect to combinations of
equipment with any other rack.
• Before installing your equipment in a rack, install all front and side
stabilizers. Failure to install stabilizers can allow the rack to tip over.
• Always load from the bottom up, and load the heaviest items first.
• Do not overload the AC power supply branch circuit that provides
power to the rack.
• Do not stand or step on any components in the rack.
: The system may have more than one power supply cable. To
reduce the risk of electrical shock, a trained service technician may need
to disconnect all power supply cables before servicing the system.
2. Connect the network cable(s) (optional).
2

Dell Precision R5500 Specifications

General

Tcase	77.6 °C
Bus type	QPI
Stepping	B1
Processor cache	12 MB
Processor cores	4
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	8
Processor codename	Westmere EP
Number of QPI links	2
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
Processor boost frequency	2.66 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	18
Memory types supported by processor	DDR3 800/1066
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	288 GB
Memory slots	6x DIMM
Internal memory	4 GB
Memory channels	Triple-channel
Memory clock speed	1066 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	96 GB
Storage media	HDD
Card reader integrated	-
Total storage capacity	320 GB
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® 600
On-board graphics card model	Not available
Discrete graphics card memory	1 GB
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Product color	Black, Silver
Audio system	Analog Devices ADI1984A
Product type	Workstation
Motherboard chipset	Intel® 5520
Password protection type	BIOS
Sustainability certificates	RoHS
Certification	CEC, WEEE, GS Mark, Energy Law, Green PC
Processor code	SLBV4
Processor ARK ID	47925
Processor package size	42.5 X 45 mm
Supported instruction sets	SSE4.2
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	40 bit

Weight and Dimensions

Depth	753.6 mm
Width	440.6 mm
Height	86.3 mm
Weight	- g
