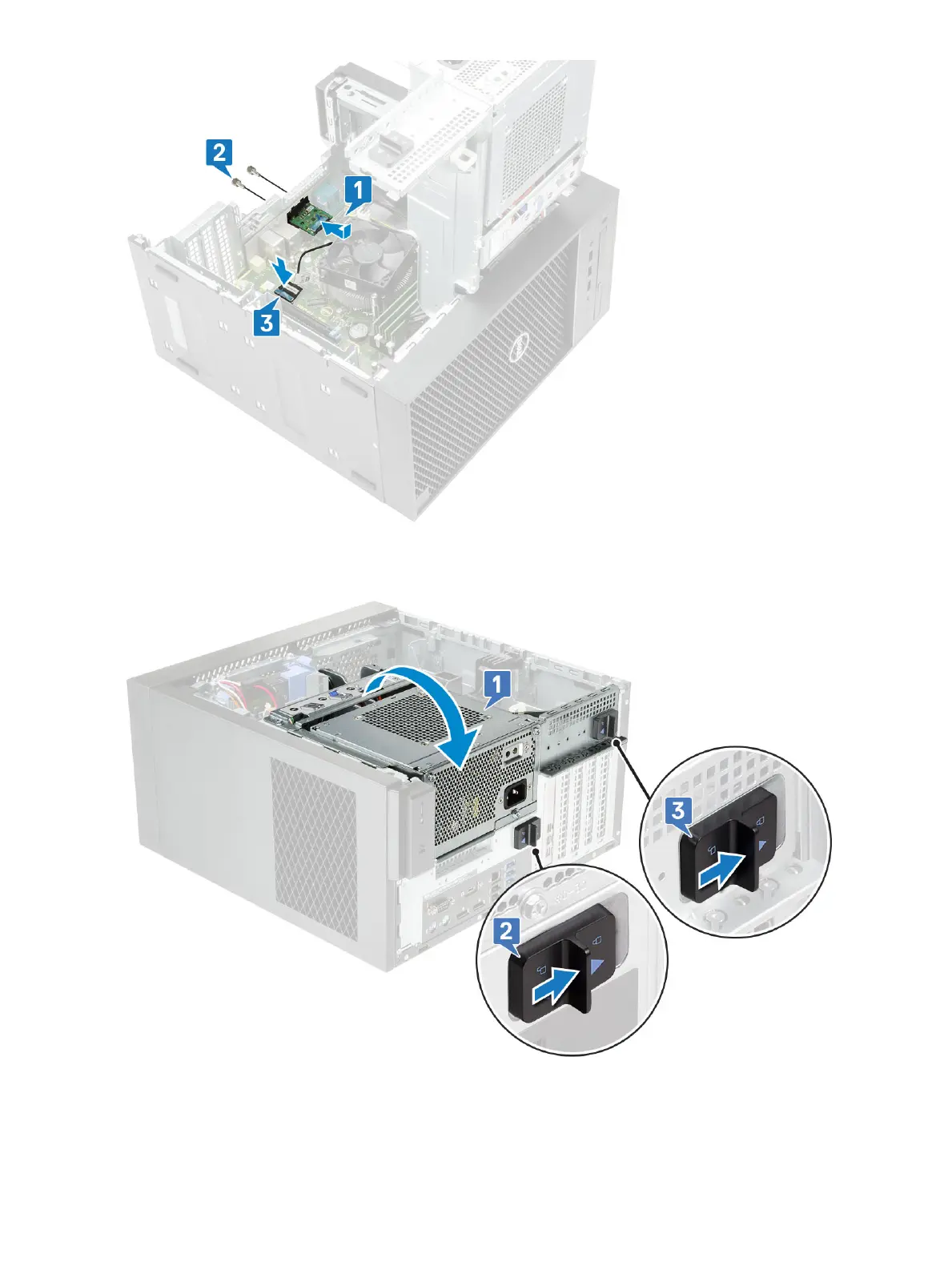

5 To close the PSU hinge:
a Rotate the PSU hinge [1]
b Slide the PSU release latches to secure the PSU hinge to the system [2,3].
6 To install the cover:
a Align the hooks on the cover with the tabs on the chassis of the computer.
b Rotate the cover until it clicks into place.
10
Installing the USB Type-C card
