Dell Precision Workstation T1650 - Page 19

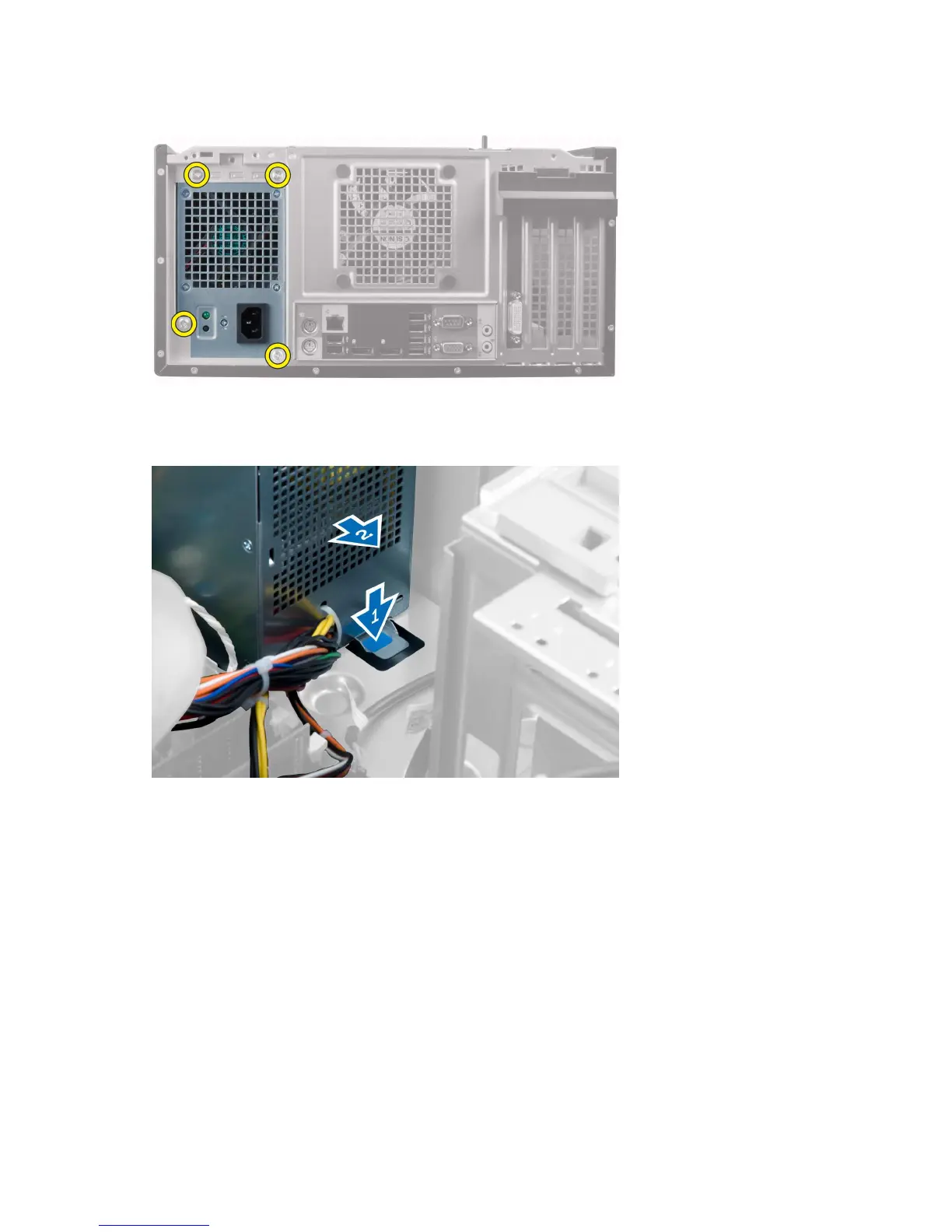

6. Remove the screws that secure the power supply unit to the computer.
Figure 16.
7. Press the release tab at the bottom of the power supply and slide the power supply towards the front of the
computer.
Figure 17.
8. Lift the power supply out of the computer.
18
