Dell Precision Workstation T1650 - Page 29

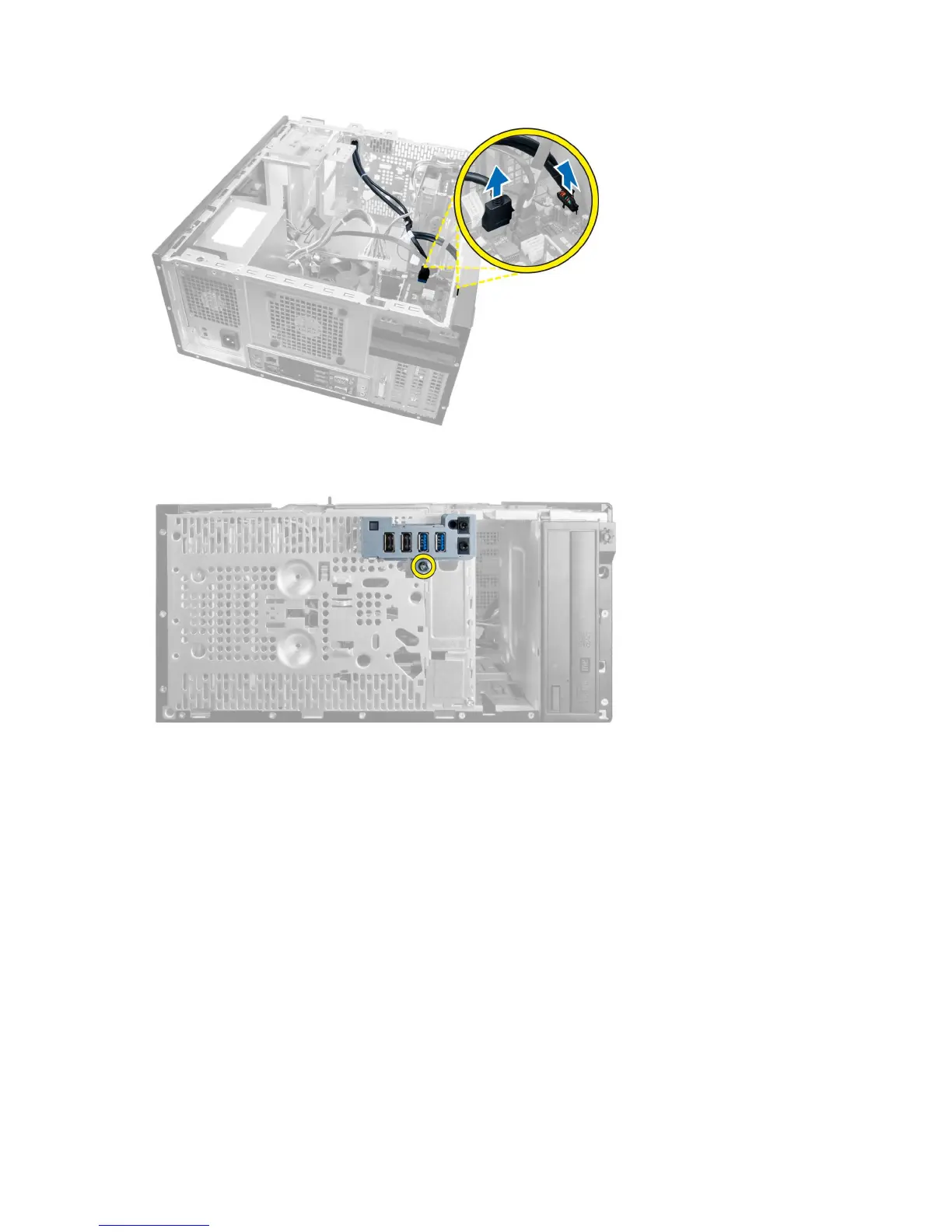

Figure 21.
4. Remove the screw that secures the I/O panel to the computer.
Figure 22.
5. Slide the I/O panel towards the left of the computer to release it and pull the I/O panel along with its cable out of the
computer.
28
