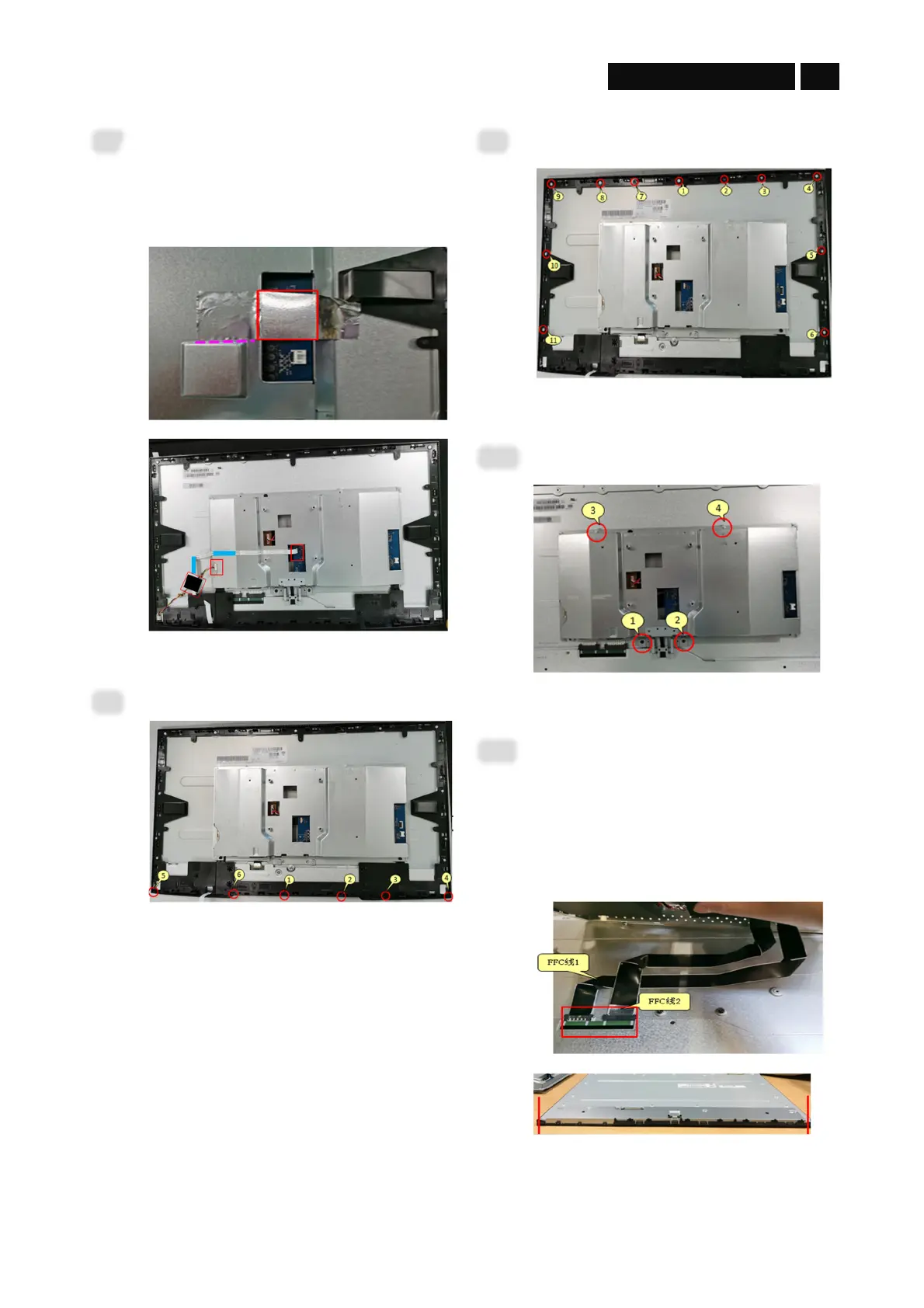

S7
Tear off AL Tape
Pull out CTRL FFC from I/F BD
Pull out backlight wire from SPS BD
and Panel
(Screw Torque: 6~7kgf)
S8
Unlock 6 “ASSY DECO” screws
(Screw Torque: 1.5~2.5kgf)
S9
Unlock 11 MF screws
(Screw Torque: 4~5kgf)
S10
Unlock 4 Main SHD screws
(Screw Torque: 6~7kgf)
S11
Pull out FFC LVDS from the Panel
Take off Main SHD from Panel
Disassemble Middle Frame and “ASSY
DECO” from panel
To Next Page
