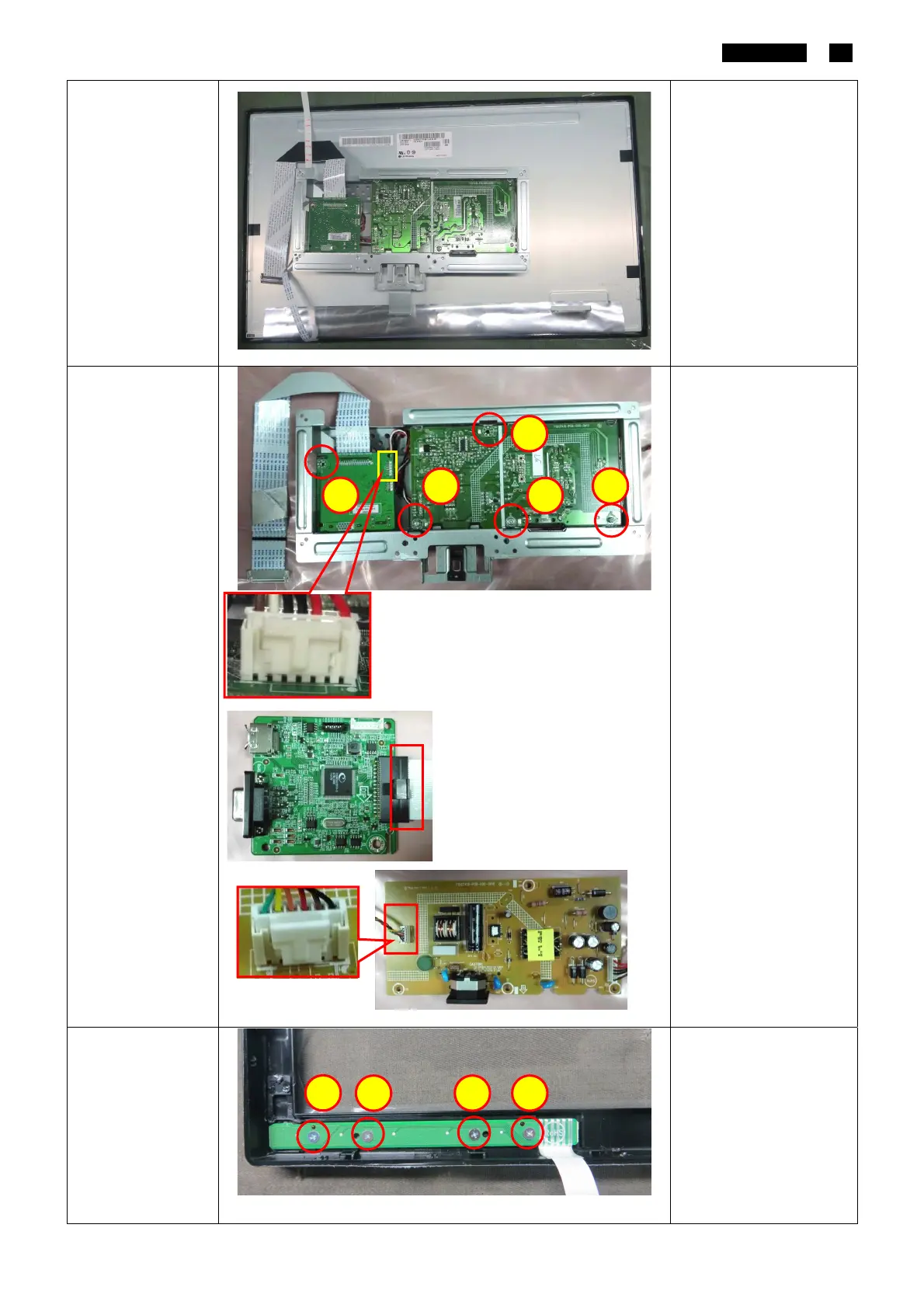

S9.Remove the
MAIN &POWER
BOARD
Use a Philips-head
screwdriver to remove 5
screws for unlocking
main board and power
board
(No.1~4 screw
size=D3x6;
Torque=6±1kgf.cm
No.5 screw size=M4x6;
Torque= 6±1kgf.cm)
Remove the cables
S10.Remove the
KEY BOARD
Use a Philips-head
screwdriver to remove 4
screws for unlocking Key
board.
(No.1~4 screw
size= M2x2.5
Torque=0.9±0.4kgf.cm)
1
3
2
4
5
1
2 3 4
