6. Mechanical Instruction
Tools: 2 Power screwdrivers（φ=5mm、L=60mm）; 1 small cross screwdriver; turnbuckle driver;
Setting: Power screwdriver torque A=11 kgF. Cm; torque B=6 kgF. Cm
Fig Remark

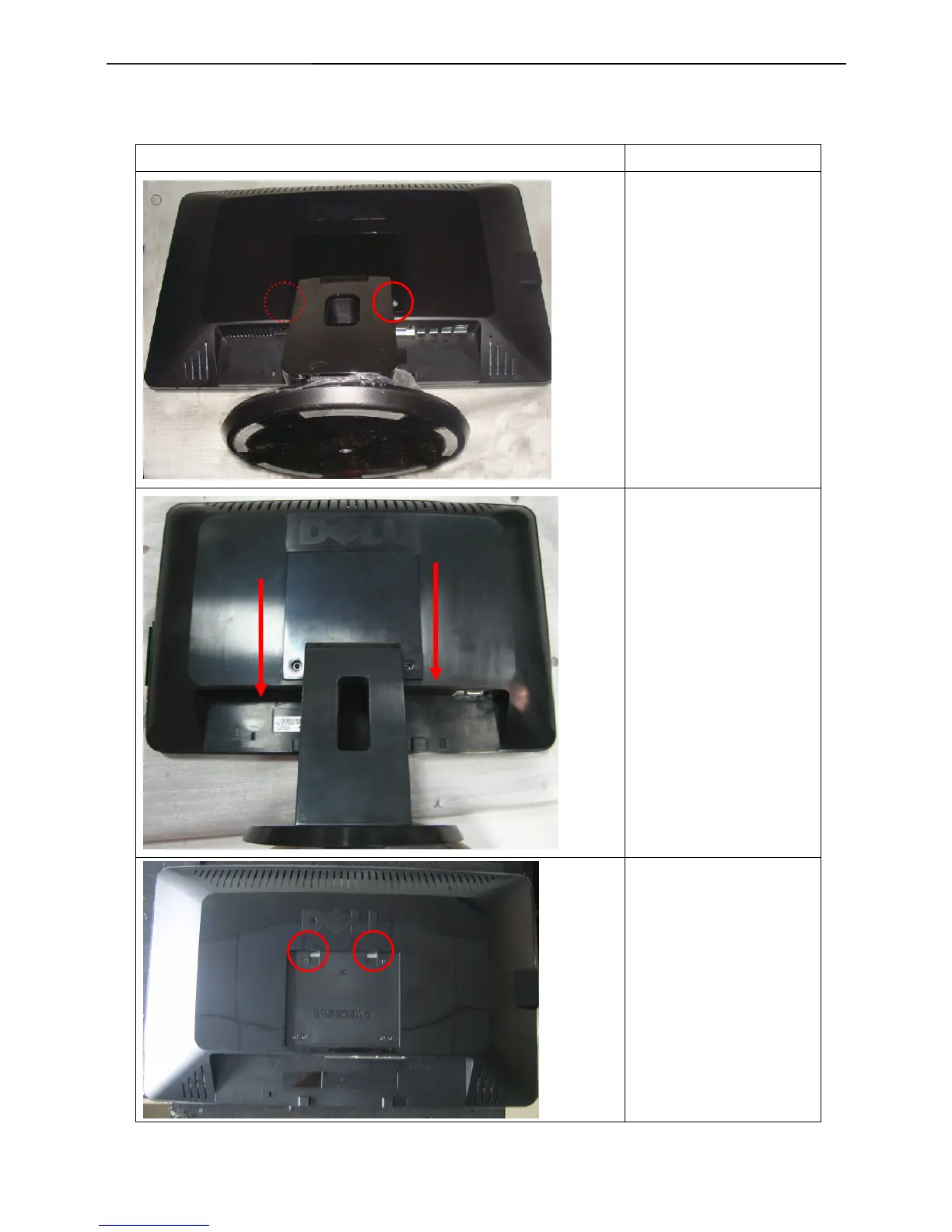

Lay LCD on a flat, soft and
clean surface.
Remove stand：
Remove the two screws
and remove the stand by
Torque A.
1. Pull out the hinge cover
follow the arrowhead
direction and remove it, then
remove the hinge.
Remove the two screws
and remove the base by
Torque A.
