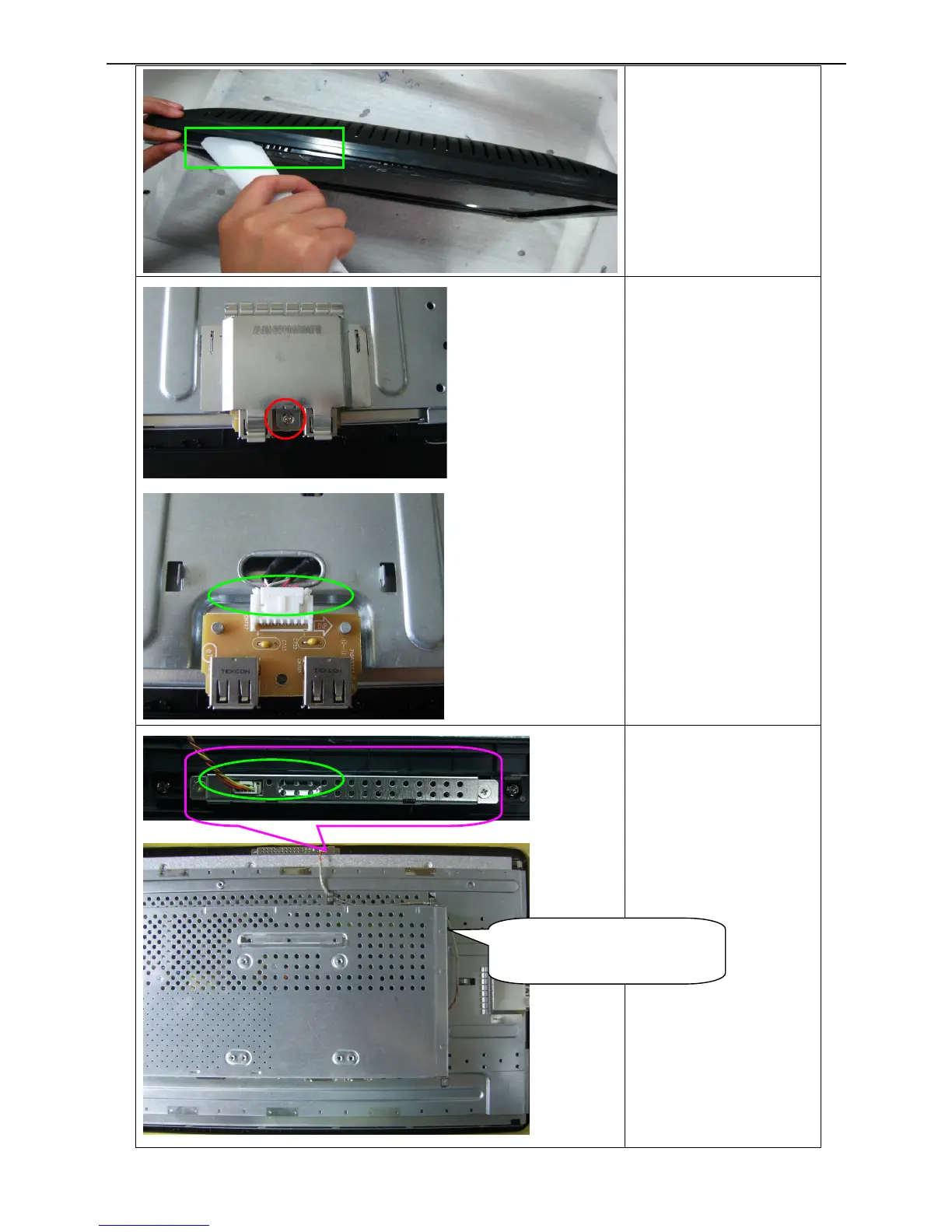

Remove the rear cover:
Pry the monitor up then find
out the hooks’ position, use
the tool (like the picture or
other card) to insert into the
gap of bezel and rear cover,
then turn over the monitor
and take off the rear cover.
Remove USB board：
Remove the screws by
torque B in red then remove
the shield which cover the
USB board,
,disconnect connector
remarked in green.
Remove shield:
Disconnect connector
remarked in green.
Cable connect main board and
camera glass
