Dell U2520DR - Page 16

- 16 -
2

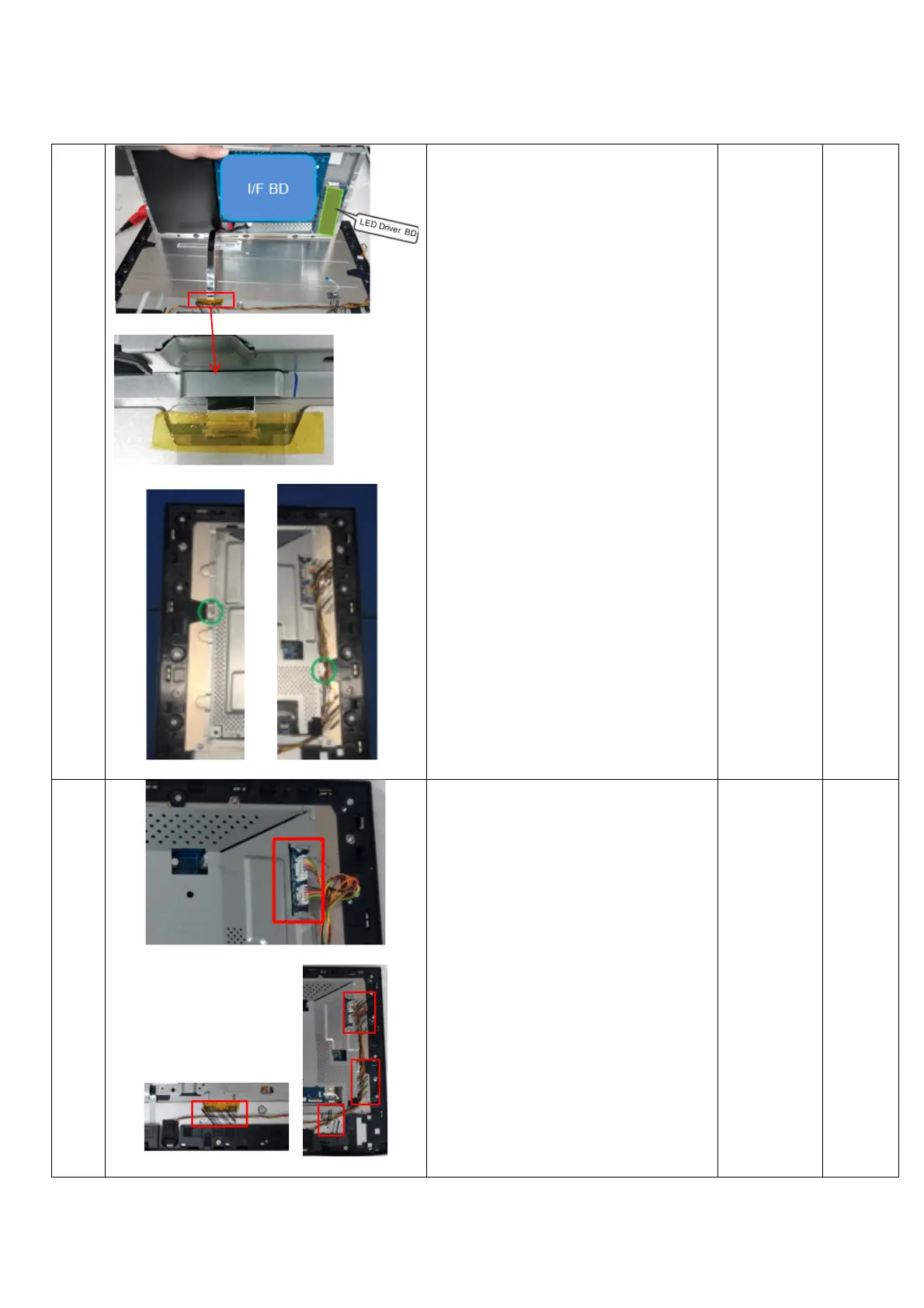

1. Insert LVDS cable to panel and
paste 1 yellow tape to fix it
2. Place Main SHD on Panel and fix
it with Middle Frame by 2 FPH
screws (See Green mark)
Philips-
head
screwdriver
Torsion of
FPH screw:
3.5-4.0kg
3
1. Insert long and short backlight
wire to LED Driver BD
2. Paste 4 black tapes to fix
backlight wire on Panel
