About your monitor │ 27

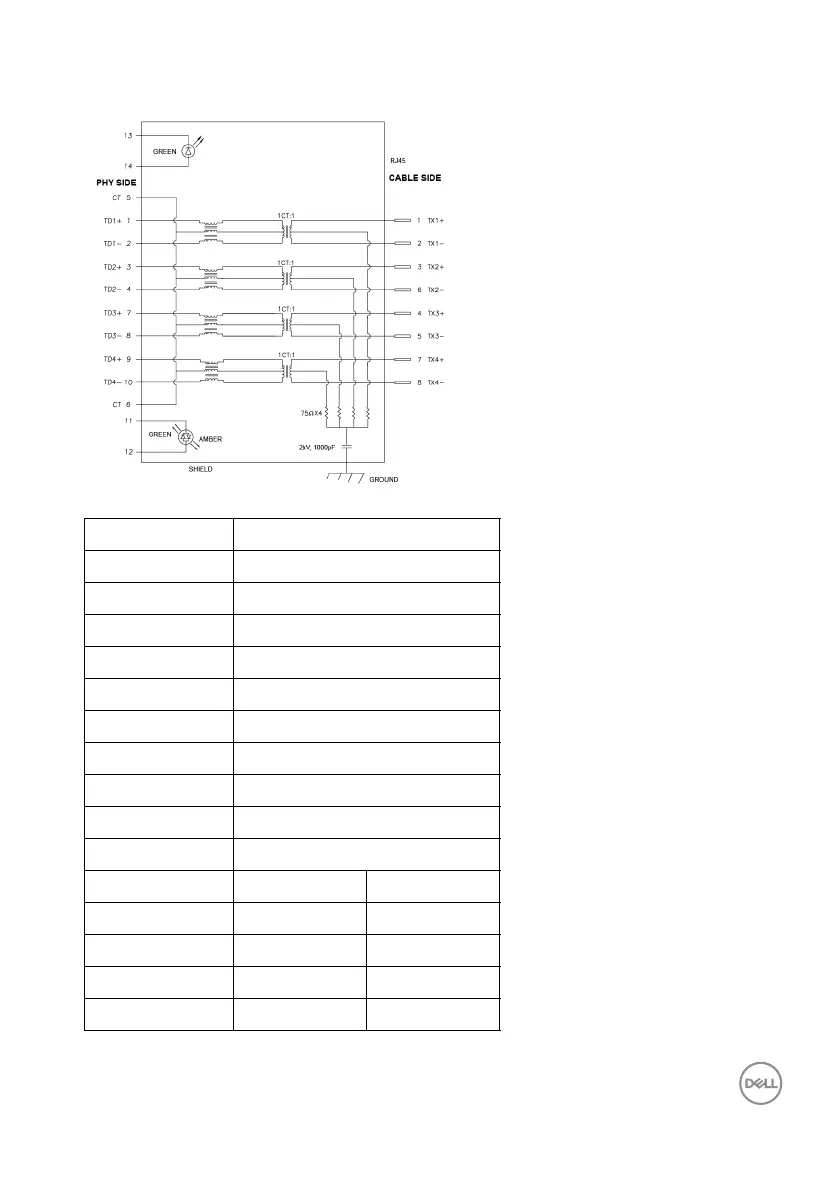

RJ45 connector
Pin number Signal
1 MDI0+
2 MDI0-
3 MDI1+
4 MDI1-
5 CT
6 CT
7 MDI2+
8 MDI2-
9 MDI3+
10 MDI3-
Pin number Amber Green
11 - +
12 + -
13 N/A +
14 N/A -
