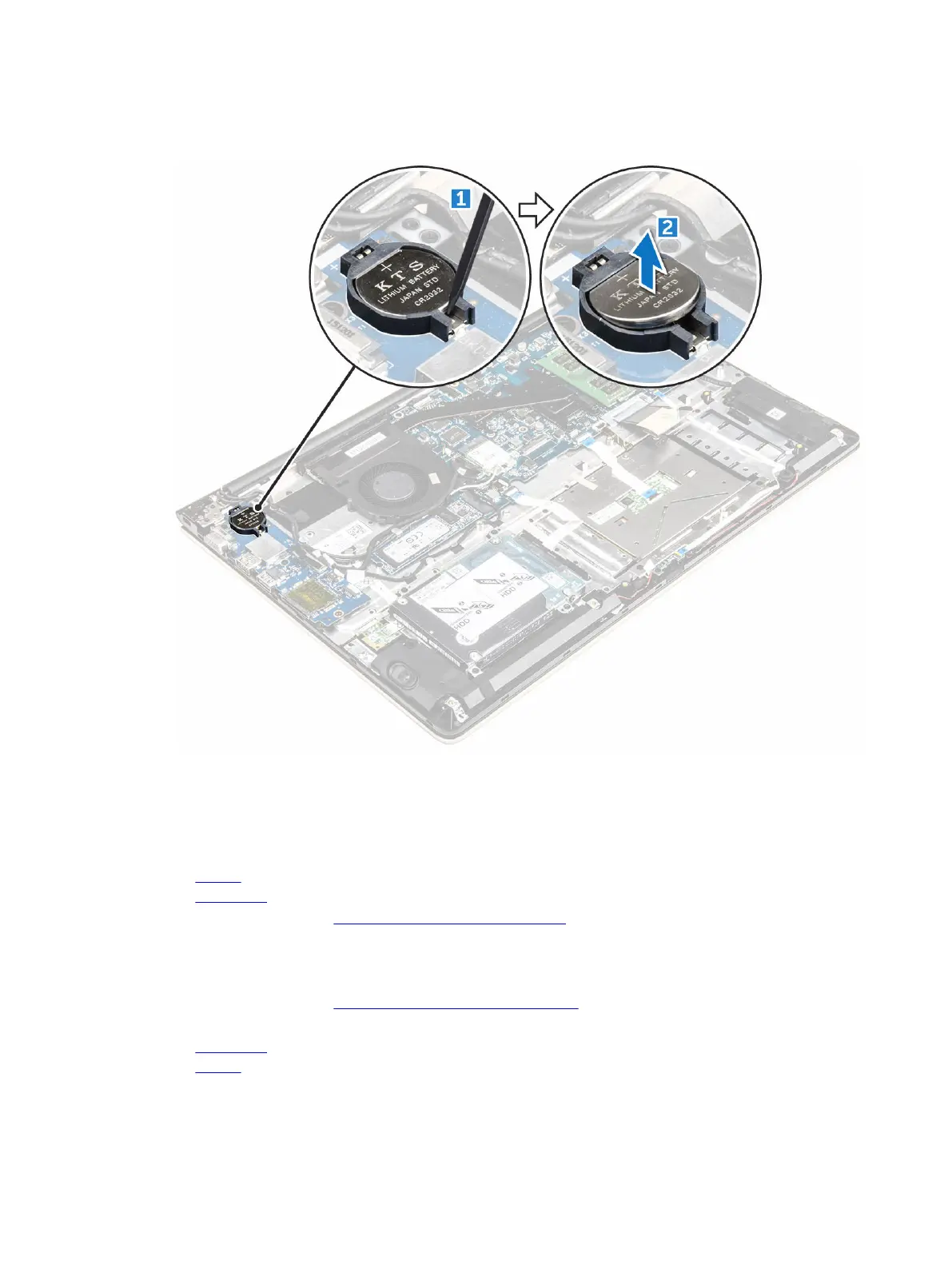

a. Pry the coin cell battery upwards from its slot using a scribe [1] .

b. Lift and remove the coin cell battery [2].

Installing the coin cell battery

1. Insert the coin cell battery into the slot on the computer.

2. Install the :

a. battery

b. back cover

3. Follow the procedure in After working inside your computer

Removing the Input/Output (I/O) board

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. back cover

b. battery
