Dell Vostro 15-5568 User Manual

Installing the display

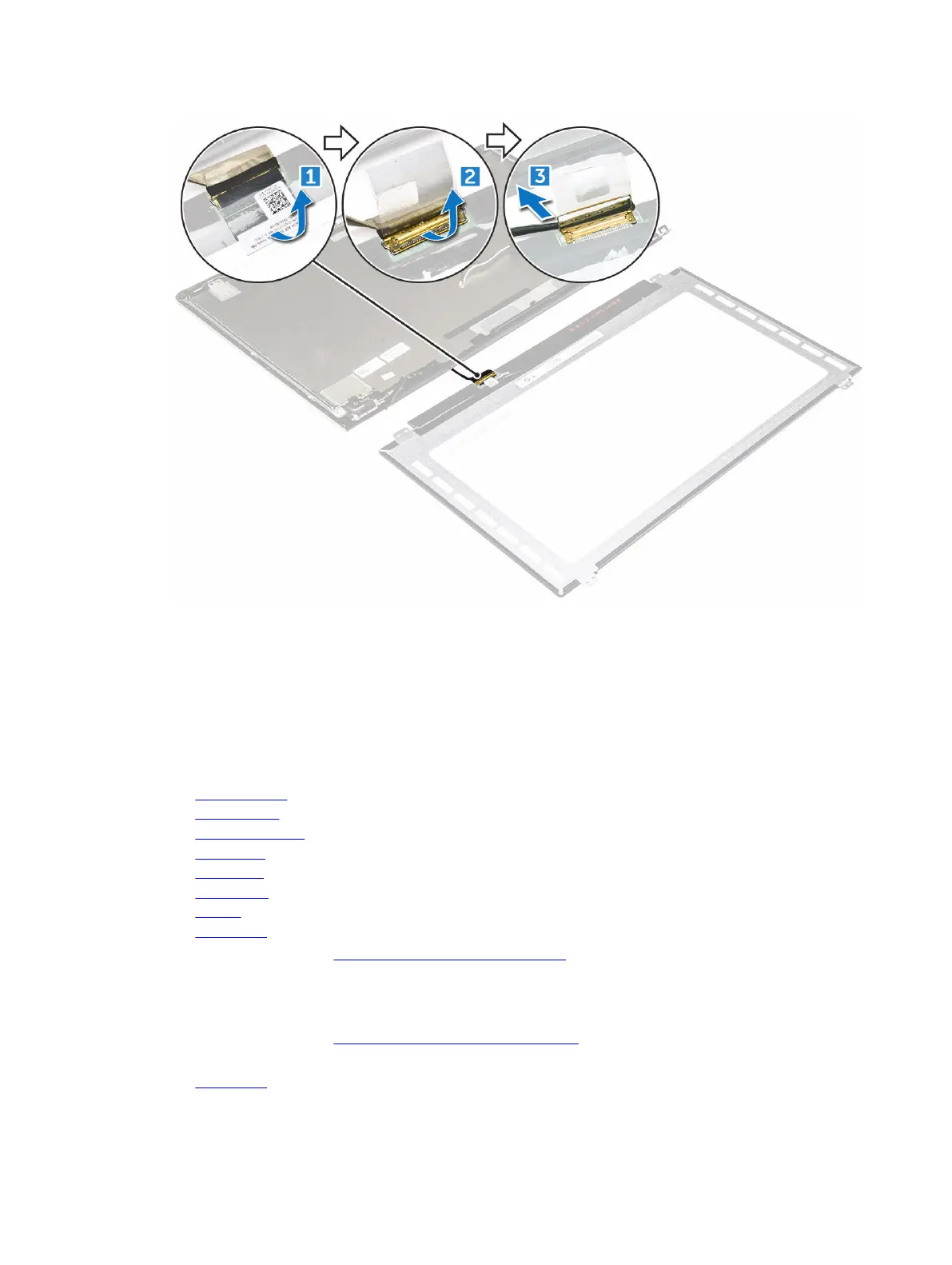

1. Connect the display connector cable to its connector on the display panel.
2. Affix the adhesive tape over the connector.
3. Flip the display around and align it along the edges of the display panel.
4. Install the screws that secure the display to the display panel.
5. Install the:
a. display hinges
b. display bezel
c. display assembly
d. system fan
e. LED board
f. WLAN card
g. battery
h. back cover
6. Follow the procedure in After working inside your computer
Removing the palmrest
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. back cover
45

Dell Vostro 15-5568 Specifications

General

Processor	Intel Core i5-7200U
RAM	8GB DDR4
Graphics	Intel HD Graphics 620
Operating System	Windows 10 Pro
Wireless	802.11ac Wi-Fi, Bluetooth 4.2
Display	15.6-inch FHD (1920x1080)
Battery	3-cell 42Whr
Weight	1.98 kg
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, SD card reader, headphone/microphone combo jack
Dimensions	380 x 252 mm
