Steps

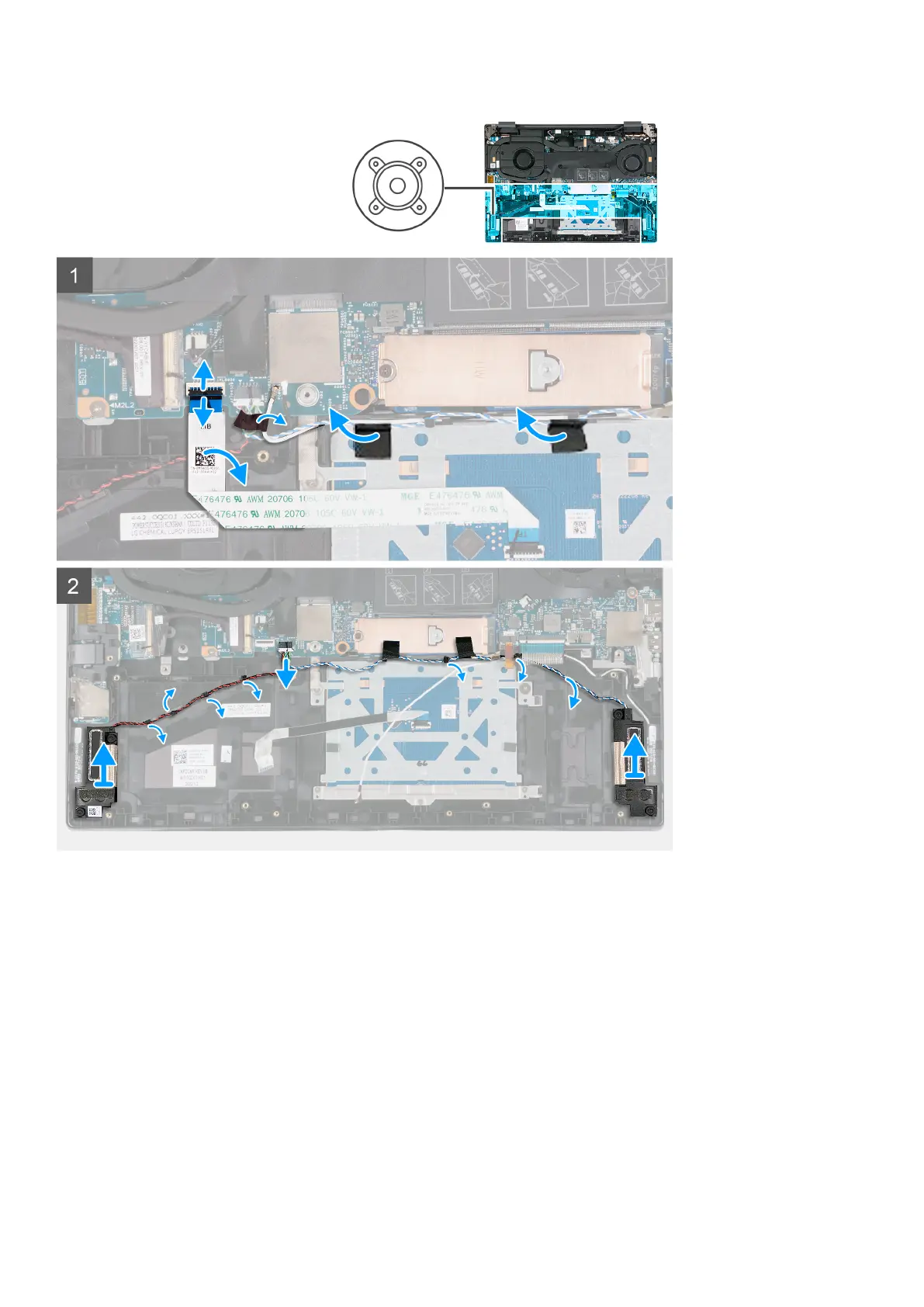

1. Open the latch and disconnect the touchpad cable from the system board.
2. Peel the tapes that secure the speaker (woofers) cable to the system board.
3. Disconnect the speaker (woofers) cable from the system board.
4. Remove the speaker (woofers) cable from the routing guides on the palm-rest and keyboard assembly.
5. Lift the speakers (woofers) along with their cables off the palm-rest and keyboard assembly.
Installing the speakers (woofers)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
46
Removing and installing components
