Dell Vostro 20-3052 User Manual

System Board Layout

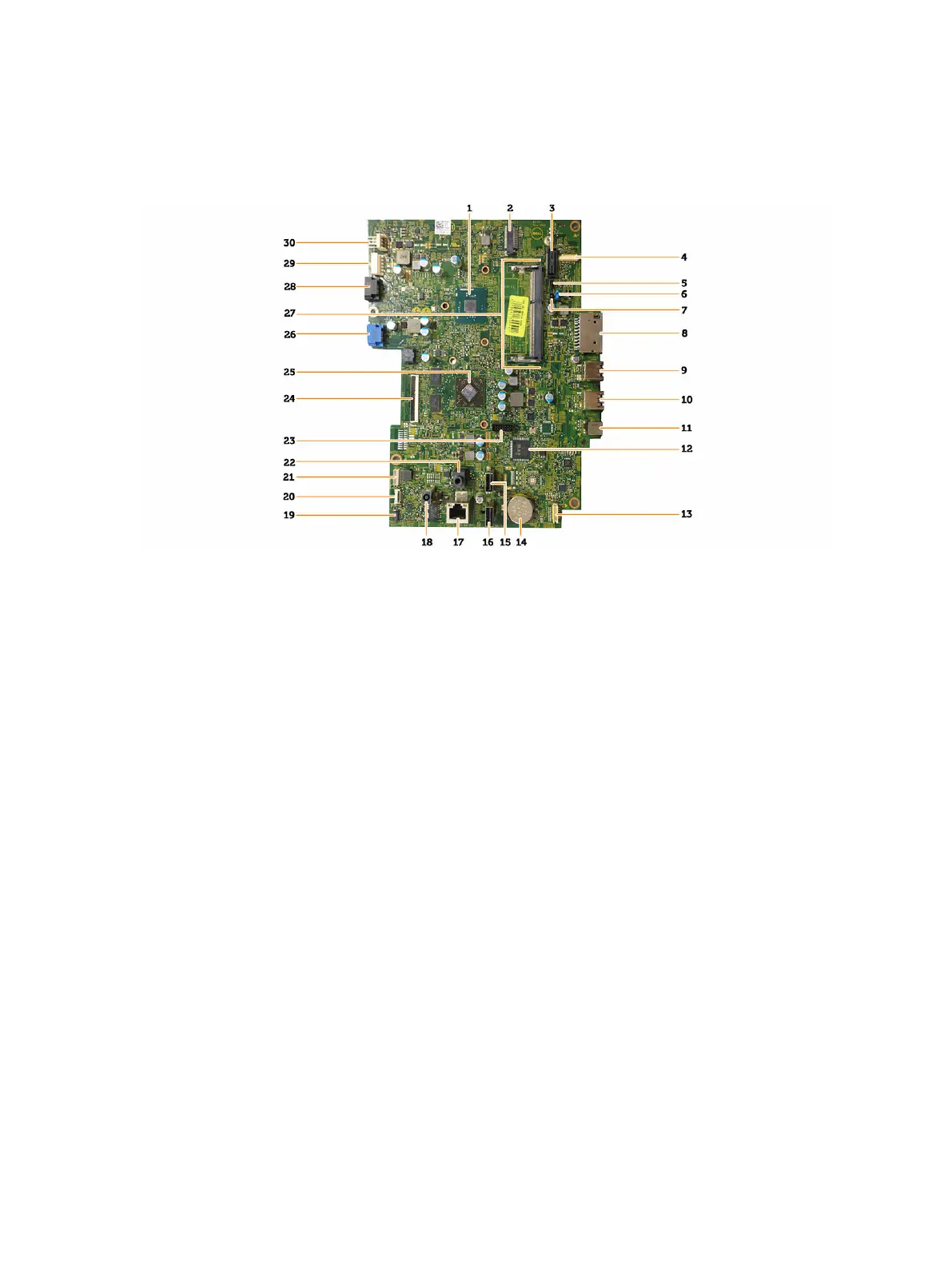

The following image displays the system board layout of the computer.
1. Processor 2. WLAN connector
3. Reserved 4. Webcam connector
5. TXE header 6. Password header
7. CMOS clear header 8. SD Card connector
9. USB 3.0 port 10. USB 3.0 port
11. Universal Jack connector 12. SIO IC
13. Speaker connector 14. Coin Cell Battery
15. Rear USB 2.0 Port 16. Rear USB 2.0 Port
17. Network connector 18. DC IN connector
19. Touch connector 20. Power switch connector
21. Converter connector 22. Audio Jack connector
23. Reserved 24. LVDS connector
25. AMD GPU Mars_LE 26. HDD port
27. Memory socket 28. HDD/ODD port
29. HDD Power connector 30. System fan connector
20

Dell Vostro 20-3052 Specifications

General

Graphics	Intel HD Graphics
Optical Drive	Tray load DVD Drive (Reads and Writes to DVD/CD)
Processor	Intel Celeron Processor
RAM	4GB DDR3L 1600MHz
Storage	500GB
Display	19.5-inch (1600 x 900)
Operating System	Windows 10 Home
Audio	Integrated
Networking	10/100/1000 Ethernet
Ports	2 x USB 2.0, HDMI, RJ-45
Power Supply	65W
Wireless	802.11 Wi-Fi, Bluetooth 4.0
