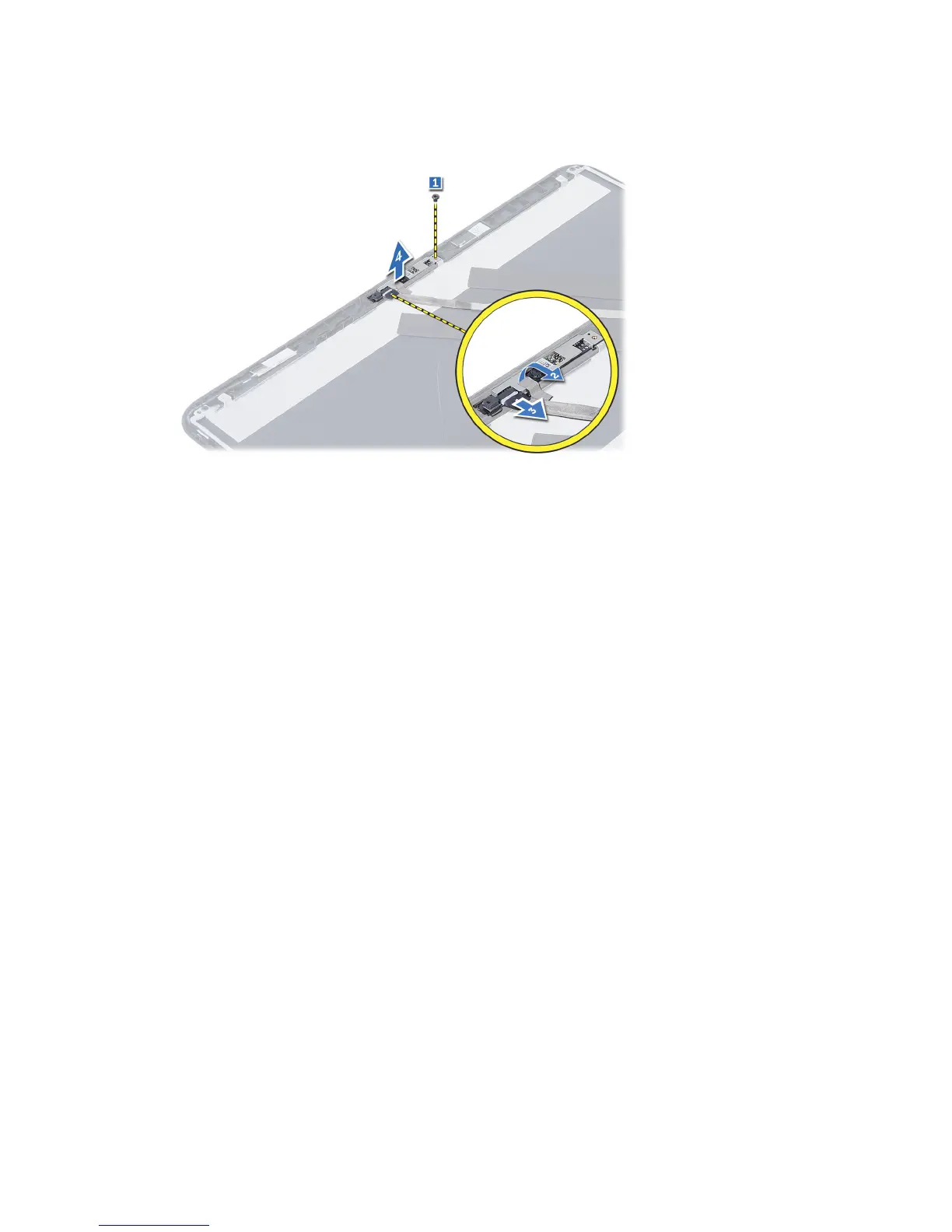

3. Remove the screw, peel the tape and disconnect the camera cable from the connector and remove the camera
module from the display assembly.
Installing the Camera Module
1. Connect the camera cable to the connector on the camera module.
2. Align the camera module in its position on the computer.
3. Tighten the screw to secure the camera module to the computer.
4. Affix the tape to the camera module.
5. Install:
a) display bezel
b) display assembly
c) palmrest
d) keyboard
e) optical-drive assembly
f) hard-drive assembly
g) memory module
h) battery
6. Follow the instructions in
After Working Inside Your Computer
.
31
